Hydraulic Snubbers

Most hydraulic snubbers have a piston which is relatively unconstrained in motion at low displacement rates. At high displacement rates the piston “locks up”, that is, the force required to move the piston increases substantially, usually as a result of the closing of a valve.

Ammonia Plant
Chemical Plant
Clean Fuels
Commercial

Electric Plant
Energy Facility
Ethylene Plant
LLDPE Chemical Plant

LNG Plant
MTBE Plant
Natural Gas Combined Cycle Facility
Natural Gas Processing & Separation

Oil Refinery
Oil Sand Mine
Paper Manufacturer
See All

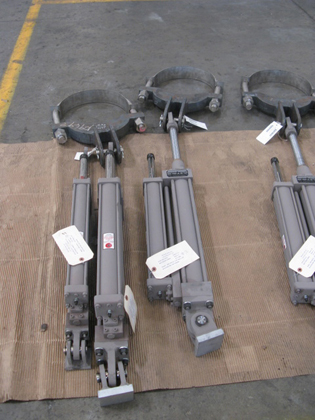

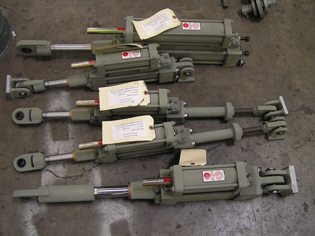

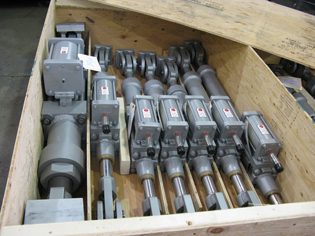

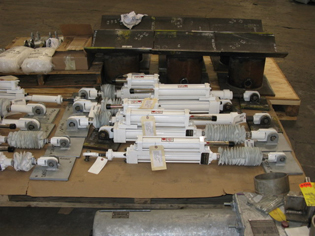

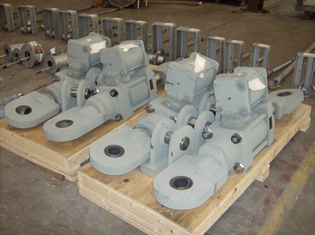

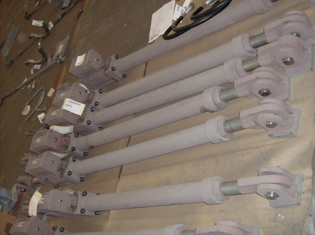

See More Images

Both snubbers function similarly. One thing to consider would be the environment. If the environment is real dirty, the mechanical ...Continue Reading

Please specify figure number,cylinder size, stroke, load, cold and hot piston settings, and piston endoption when ordering a mechanical or ...Continue Reading

A hydraulic snubber is a device that permits pipe deflection under normal operating conditions, but when subjected to an impulse ...Continue Reading

There is little difference in the initial dragforce associated with mechanical and hydraulic snubbers. Basically, both styles are designed to ...Continue Reading

When the velocity of the piston reaches a certain value (about 8in/min),the hydraulic valve will shut off and the entire ...Continue Reading

The basic working principal behind a hydraulic snubber is that under slow(normal) speeds, a piston moves within a hydraulic reservoir ...Continue Reading

Snubbers can be adjusted by either changing the initial position of the telescoping cylinder or by using (where available) the ...Continue Reading

Hydraulic snubbers and mechanical snubbers can take the same loads if they are the same size snubber. It depends upon ...Continue Reading


More FAQs…

General Dimensions & Specifications

Download Anchor / Darling Catalog

Hydraulic Snubbers Guide

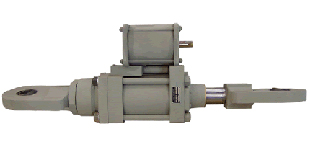

The style “AD” Hydraulic Shock Arrestor is a manifold design hydraulic component consisting of a high pressure main cylinder, a flow control section which contains dual stage velocity sensitive poppet valves, and a spring energize reservoir.

Fig510ad 511ad snubber 2

Application:
For use on piping systems or equipment when unrestrained thermal movement must be allowed, but which must be restrained during impulsive or cyclic disturbance. The unit is not effective against low amplitude, high frequency movement. The preferred usage with standard settings is to prevent destructive results due to earthquakes, flow transients, or wind load. Special settings are available to absorb the continuous thrust resulting from safety valve blow-off or pipe rupture.

Size Range:
PTP offers seven sizes with cylinder bores of 1 1/2 to 8 inches. These units have a normal load range of 3,000 lbs. to 130,000 lbs. All are made to include reservoirs in 6, 12, or 18 inch strokes, except the 1 1/2 inch size. The 1 1/2 inch size is offered only in 6 & 12 inch strokes only. Snubbers, as they are sometimes referred to, are available with remote reservoirs.

Size Selection:
The selection of size depends on the anticipated force and thermal movement of the protected piping or equipment. It is recommended that the selected cylinder stroke be a minimum of the anticipated thermal movement, plus 20%.

Basic Operation:
The piston rod is free to move in either direction with no restrictions to the fluid flow for all piston velocities up to the activation velocity. At activation velocity the poppet valve, internal to the snubber, closes. Closure of the poppet in either tension or compression greatly reduces the fluid flow through grooves in the poppet at rated design capacity of the unit is termed the “ bleed rate”. When the applied velocity of the unit becomes zero the poppet valve opens once again, allowing free piston movement.

Standard Design Features:
– Piping and/or equipment movement is controlled by tamperproof dual stage flow control poppets designed with self-cleaning orifices.
– Furnished as a complete, compact and efficient unit, ready for immediate use.
– Manifold configuration requiring no external piping.
– Spherical, self-aligning ball bushings allow for ±5º of angular motion or misalignment.
– Stable premium grade, antiwear hydraulic fluid.
– Pressurized hydraulic reservoir allows mounting in any spatial orientation.
– Virtually no resistance to normal thermal movements of the piping.
– Large restraining forces compared to size.
– Functions in restraining tension and compression loads.
– Designed for continuous operation up to 200°F with brief transients to a maximum of 300°F.
– Stroke position is measured from a machined groove located at the piston rod wrench flats.
– Fluid Level in the unit, thereby eliminating estimate of reserve fluid level.

Optional Design Features:
– Remote Reservoir Mounting
– The snubber’s pressurized reservoir can be remotely mounted for inaccessible locations.
– Integral Relief Valve- A non-adjustable valve, which is factory preset at 133%, or 200% of rated load.
– Protective Boot- Installed over piston rod for protection against corrosive or outdoor environments.
– Rigid Stud Application- When no thermal growth is anticipated after lock-up, an optional poppet valve, without bleed, can be furnished. Must be ordered with optional integral relief valve.

Hydraulic Snubber Equation

Factory Pre-set:
The units are shipped from the factory complete, tested, reservoir filled to capacity and piston rod preset to mate with pin to pin installation dimension. To determine factory pre-set dimension perform the following calculations.



HYDRAULIC SNUBBERS
In addition to the mechanical equipment described in this brochure, Anchor/Darling Enterprises also offers a complete line of hydraulic snubbers.
• hydrA/Damp — Our advanced design, corrosion resistant hydraulic snubber, for superior performance within many environments.
• B-P Style — Our well-established (formerly Bergen-Paterson) manifold design hydraulic snubber, eliminates external tubing and its pressurized reservoir allows installation in any spatial orientation.
• Non-Nuclear — Our commercial snubber design, for use within fossil/co-gen/petro-chernical plants that require proven performance at economical prices.
For additional information on any of our hydraulic or mechanical snubbers, contact the regional office nearest you.



Download Fig. 510AD and Fig. 511AD PDF

Fig 510AD Short Strut & 511AD Adjustable Strut Hydraulic Snubbers

Fig. 510AD Short Strut Hydraulic Snubber and Fig. 511AD Adjustable Strut Hydraulic Snubber 510ad 3d511ad 3d

ORDERING: Specify figure number, description, cylinder size, stroke, load, thermal movement, overall length, and piston end option. If a pipe clamp is required, please specify nominal pipe size or special O.D., pipe temperature, and any additional option features (i.e. integral relief valve or remote reservoir mounting) or special settings required.

Fig. 510AD – SHORT STRUT HYDRAULIC SNUBBER

Cylinder Approx. Weight (1) H Min.
(2)
P-P Min. (2) Load Rating (KIPS) A B D D1 E G L M W1 S BB
Size Stroke
1   1/2 6 35 16 21 3 2 3/4 2   1/2 2   3/4 3 1   1/16 1   1/4 5 2 3/4 0.656
12 42 22 27
18 50 28 33
2   1/2 6 70 16   1/2 23   1/4 10 2   1/2 1 3 3   1/2 3   3/4 1   1/2 1   3/4 6 3 1 0.875
12 83 22   1/2 29   1/4
18 96 28   1/2 35   1/4
3 1/4 6 125 17   3/8 27   1/8 20 4 1   1/2 5 4   3/4 5   1/2 2 1/2 2   1/4 7   3/8 4   1/4 1   1/2 1.312
12 145 23   3/8 33   1/8
18 165 29   3/8 39   1/8
4 6 155 17   3/4 28   1/2 30 4 1   1/2 5 4   3/4 6   1/2 2   1/2 2   1/2 8   1/2 4   1/4 1   1/2 1.312
12 180 23   3/4 34   1/2
18 205 29   3/4 40   1/2
5 6 255 18   1/4 31   3/4 50 5   1/2 2 7 6 8 3   1/2 3   1/4 10   1/4 5   1/2 1   7/8 1.75
12 290 24   1/4 37   3/4
18 325 30   1/4 43   3/4
6 6 410 19   1/2 33   3/4 70 6 2   1/4 7 6   1/2 8   1/2 4 3   3/4 11   7/8 5   3/4 2   1/4 1.968
12 465 25   1/2 39   3/4
18 520 31   1/2 45   3/4
8 6 805 21   3/16 41   7/16 130 8   1/2 3 10 10 12   1/2 5   1/2 4   3/4 16 7   3/4 2   7/8 2.625
12 890 27   3/16 47   7/16
18 975 33   3/16 53   7/16

Fig. 511AD – ADJUSTABLE STRUT HYDRAULIC SNUBBER

CYLINDER APPROX. WEIGHT (1) P-P F W MIN.
SIZE STROKE MIN. (4) MAX.
1   1/2 6 40 32   3/4 100 6   1/4 7   1/2
12 47 38   3/4 100
18 54 44   3/4 100
2   1/2 6 75 36   1/4 120 7   1/4 8   3/4
12 90 42   1/4 120
18 105 48   1/4 120
3   1/4 6 130 41   5/8 120 9   1/2 9   1/4
12 150 47   5/8 120
18 170 53   5/8 120
4 6 200 44   1/8 120 10   1/8 9   3/4
12 225 50   1/8 120
18 250 56   1/8 120
5 6 330 49   1/2 120 12   1/2 10   3/4
12 365 55   1/2 120
18 400 61   1/2 120
6 6 530 53   3/8 120 13   3/4 11   5/8
12 590 59   3/8 120
18 645 65   3/8 120
8 6 1050 62   11/16 120 16   1/4 13   3/8
12 1140 68   11/16 120
18 1225 74   11/16 120

Fig. 510AD & 511AD: Dimensions
CYLINDER SIZE AFig. 510AD P-P Retracted1Fig. 511AD P-P Retracted1MAX.RECOM. NORMAL LOAD2 (lb.)
1 1/222132 3/43,000
2 1/22 1/223 1/436 1/410,000
3 1/4427 1/841 5/820,000
4428 1/244 1/830,000
55 1/231 3/449 1/250,000
6633 3/453 3/870,000
88 1/241 7/1662 11/16130,000
1Add cold piston setting for install length. These values reflect cylinders having 6" of stroke.
2Load must not be applied utisde 10º included angle cone of action to the pipe clamp axis w/o special authorization.

Fig. 2100 is discontinued. Please refer to Fig. 510AD & Fig. 511AD.

Fig510ad 511ad snubber 3

510ad 3d

511ad 3d
ORDERING: Please specify figure no., cylinder size, stroke, load, cold and hot piston settings, and piston end option. If clamp is required, please specify nominal pipe size, or special O.D. and clamp material. Please specify or describe any additional optional features or special settings required
