    Variable springs always must have a difference in load between the hot and cold settings. Whereas in constant springs, the ...Continue Reading

    A spring hanger is a subset of either variable or constant spring supports that attach directly to structural steel components ...Continue Reading

    The “cold” setting of a variable spring support refers to the installed position and the associated load being carried by ...Continue Reading

    We offer seven different configurations for Variable Spring Supports (Type A, B, C, D, E, F, G). Click here for ...Continue Reading

    “Spring can” is the general term used to describe either variable or constant spring supports. Custom Spring Can with Slide ...Continue Reading

    It would not be recommended for a constantspring to be designed for less than 0.1″ for travel. Variable springs canaccommodate ...Continue Reading


    More FAQs…

    General Dimensions & Specifications

    Download Variable General Information



    INDUSTRY STANDARDS AND SPECIFICATIONS

    The Manufacturers Standardization Society (MSS) has standard practices SP-58 and SP-69 which are widely used in our
    industry. ASME B31.1 and B31.3 are important standards for piping in the power and petrochemical industries. Moreover,
    many of our customers have their own standards and designs for pipe supports. At Piping Technology & Products, Inc.,
    we always keep these guidelines in mind and manufacture your supports to their strict specifications. In this section, you
    will find our standard variable and constant pipe supports.

    TYPES OF VARIABLE SUPPORTS

    The term “type” is used with an alphabetical designation (A-G) to describe seven different physical connections to the supporting structure.

    The figure below illustrates the applications and the physical connections for each type. Hangers are suspended from structural members while base supports (Type F) rest on a supporting surface.

    Variable Spring Support Types

    Type A: The spring support is furnished with a threaded bushing in the top plate, providing for a simple rod attachment for the upper connection.

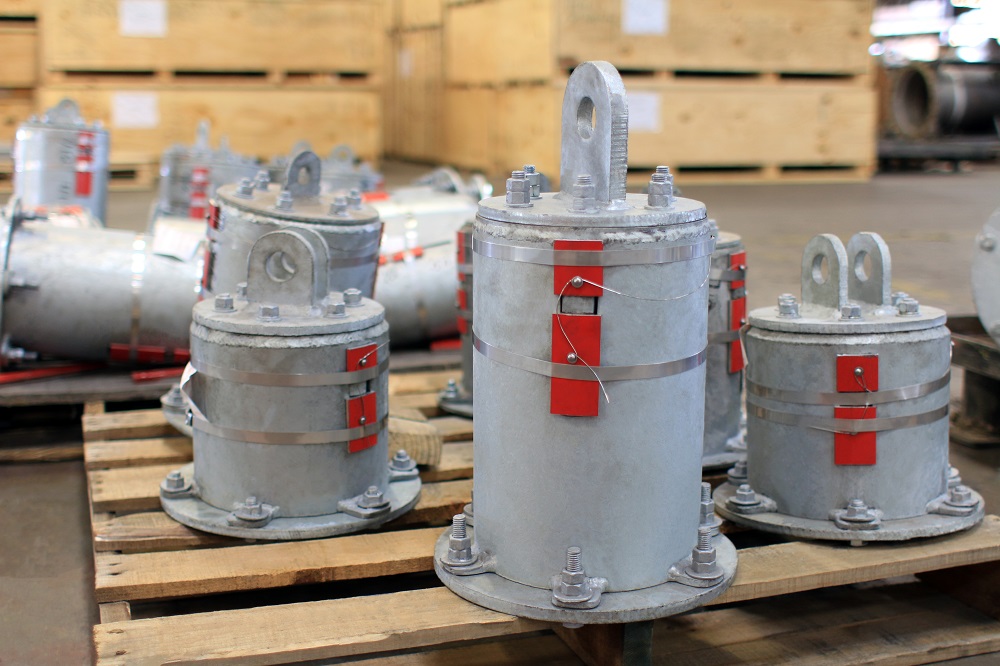

    Type B & C: The spring supports are furnished with one or two lugs welded to the top cap plates of the casing.
    Type D: The spring support permits adjustment from the top, by turning the nuts on the hanger rod against a piece of tubing. The tubing is securely welded to the spring cap. In the type D, the spring is set above the supporting steel.
    Type E: The spring support permits rod adjustment from either above or below the spring. The type E spring is set above the supporting steel or can be welded directly to the supporting steel from below.

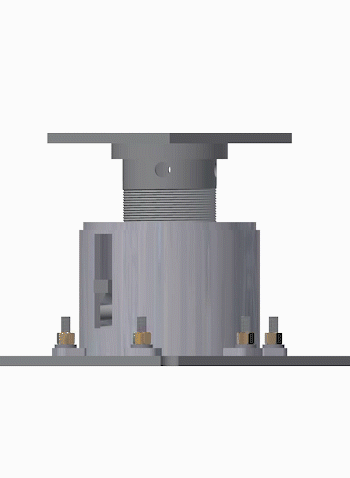

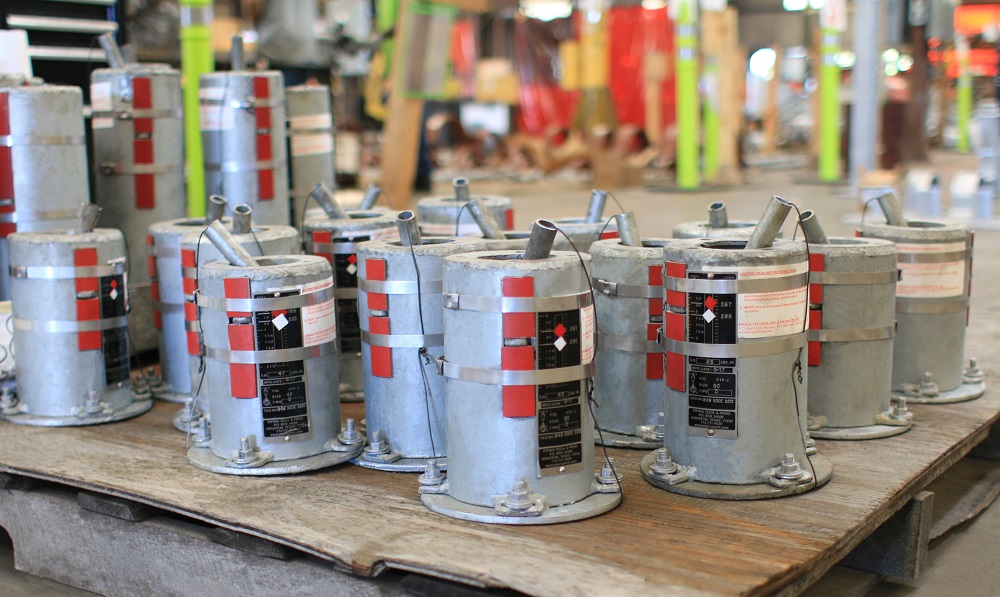

    Type F: The spring support is designed to support piping from below, directly from the floor or supporting steel. Adjustment is made by inserting a bar into holes in the load column and turning the load column as a jack screw. The base plate is bolted to the case and has four holes for fastening. The installed height of the base (F-type) spring should be specified as follows:

    • With upward movement from cold to hot position: The installed height should be the midpoint between the minimum and maximum “X” dimension plus the thickness of the load flange.
    • With downward movement from cold to hot position: The installed height should be midpoint between the minimum “X” dimension plus the load flange thickness plus the amount of the vertical movement.

    Type G: The spring support assembly is formed by welding two standard spring assemblies to the ends of a pair of channels. Type G assembly can accommodate unusually heavy loads, and is especially adaptable for avoiding interference in spaces where headroom is limited. The assembly can be furnished with center-to-center dimensions, as specified by the purchaser. When ordering Type G, divide the total pipe load in half to select the proper spring size. The travel range of the springs remains unchanged.

    The way a variable spring support responds to an applied load depends on the coil or coils inside the casing. Each coil arrangement has a spring rate expressed in units of pounds/inch (or kilograms/millimeters) of compression. The required coil size is determined by load while the required number of coils (length) is determined by the anticipated range of movement. A longer coil or coils placed in series will provide greater travel for similar loads. Manufacturers use their figure numbers to designate the coil arrangements which provide greater movement. At Piping Technology & Products, Inc., we use PTP-1, PTP-2, PTP-4, PTP-6, and PTP-8 to designate the five standard coil arrangements we employ to increase the working range of travel of variable supports. The Load and Travel Tables are color-coded to identify the travel and spring rates for each PTP figure number. These tables can be used to select the PTP figure number and size required for a particular application.

    PHYSICAL DIMENSIONS
    The physical dimensions of variables are different depending on the figure number and size you have selected. The following pages provide drawings and dimensions for every combination of PTP’s standard variable supports. If you have a requirement for which you do not have clearance for the standard spring, please contact us about a modification to satisfy your requirement.
    During assembly the coils are pre-compresseVariable Spring Support Travel Stopsd and travel stops, which are painted red, are installed and banded in place with steel bands as shown in the figure to the right. Any load, such as in hydro-testing of the pipe, applied to the variable spring prior to removing the travel stops will not be applied to the coil. When installation is complete, the travel stops must be removed so the variable spring can function properly.

    FINISH

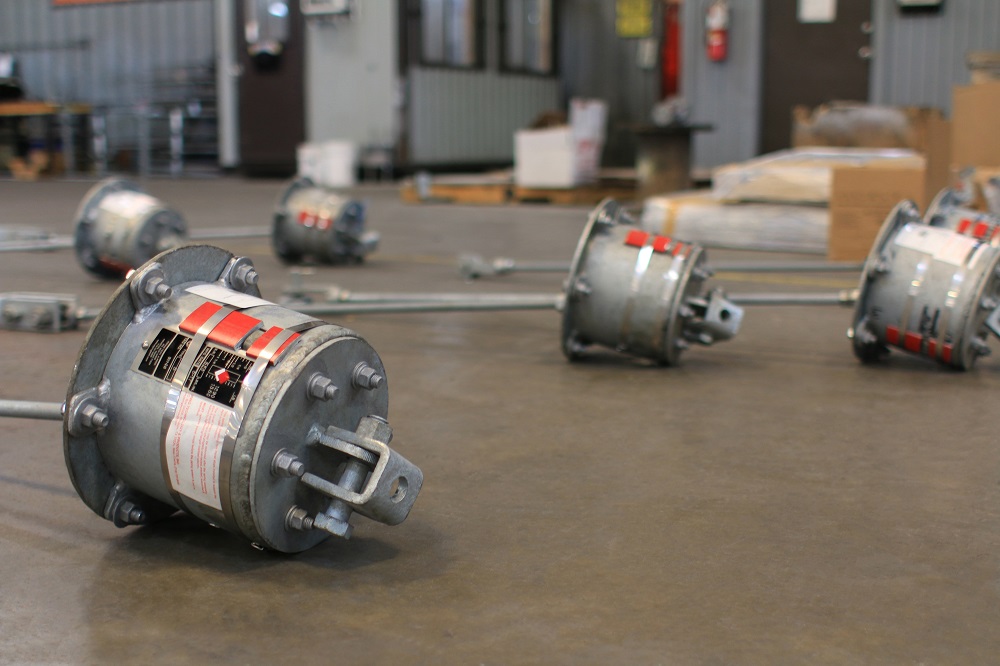

    Galvanizing provides the most cost-effective finish for use in corrosive environments. Because the majority of our customers specify galvanized finish, we maintain a large inventory of galvanized components which enables us to assemble and ship variables very quickly. A longer delivery time may be required when finishes other than galvanized are specified.

    SPECIAL FEATURES
    Special features can be provided with the PT&P standard variables when required. For example, lifting lugs, such as those shown in the figure on the right, can be helpful for installing large hangers. Other special features include upper and lower limit stops, guided load columns, jacking bolts, PTFE 25% glass filled slide plates, collars or extended load columns. Special features may increase the price and the time required for delivery.Variable Spring Support Hole Size

    FEATURES
    1. Precompression – precompressing the spring coil into the hanger casing saves headroom and erection time.
    2. Slots in the casing at two locations 180 degrees apart allowing for complete in-service visual inspection of the spring coil and other internal components.
    3. For each series, there is a reserve travel at the upper and lower limits of the working range of the hanger, and any travel beyond this reserve travel becomes either free up movement or a limit stop for downward travel.
    4. The allowable stress of the coil spring conforms to MSS SP-58.
    5. All-steel construction-spring and casing are fabricated of steel and are rugged and compact.
    6. Anti-corrosive material (stainless steel) is used for the name plate.
    7. Load Indicators are clearly visible in the slot and are easily readable.
    8. The piston plate serves as a centering device or guide, maintaining spring concentricity under eccentric loads.
    9. Finish – hot dipped galvanized, or other, as specified.
    10. All F-type supports are supplied with a load flange.

       Variable load table thumbnailVariable Load & Travel Tables
      Click on the above PDF to view the load and travel tables in Standard, Metric and Newton.

      The twenty-three columns designed 00, 10, 20, …, 220 identify the size and spring rate of coils used in the variables. The larger numbers have higher spring rates and are used to support greater loads. The recommended working range of loads for each size is shown between the red lines in the tables. The center of the working range is colored blue. Selecting variables with the loads within the working range provides a reserve above and below to insure the coil can function inside the casing. In using the Load and Travel Table to choose the proper variable support, it is best to have the operating (hot) load and an amount and direction of expected movement. Variability is a key criterion in selecting the figure number and size. Variability is the percentage of change in the supporting force between the operating (hot) and installed (cold) positions calculated as shown:

      Variability = (Spring Rate x Movement) / Operating Load

      Good practice, as specified by MSS SP-58, is to choose a support with variability less than or equal to 25%.

      Always try to choose a variable with the operating (hot) load near the center line (blue) of the working range in the Load and Travel Table. If you have a situation in which you cannot select a standard variable which has both the operating load and the installed load within the working range, contact us and we will help you determine alternatives.

      The quality of the spring coil is very important to performance. Piping Technology buys coils from major suppliers with automated production facilities and Quality Assurance programs to provide the highest quality at competitive prices. We keep an extensive inventory of coils at all times so we can respond to the emergency requirements of our customers.

      Most of our customers request neoprene coating for their spring coils, which we do in our facility. Neoprene protects the spring coil from many corrosives without affecting the flex life of the coil. In some cases, such as in a furnace installation, temperatures are too high for neoprene. We apply paint or other types of coatings for this situation. Neoprene is recommended only for operating temperatures up to 255°F.

      Each variable spring we build is placed in a load cell and calibrated to the design load and movement. The name plates show the position where the pressure plate meets the coil at the operating (hot) load and the installed (cold) load positions. The name plate also shows PTP’s figure number, size, spring rate, and the customer’s designated mark or tag number.

       spring name plates

      SPRING NAME PLATES

        Download PDF

        Fig. PTP-1 – Types A, B, & C – Short Variable Springs

        Fig. PTP-1-Types A, B, & C-Short Variable Springs
        ORDERING: Specify figure number, size, type, description, operating load and calculate amount & direction of pipe movement from installed to operating position. Please specify any non-standard requirements, i.e. internally guided load column, jacking bolt, lifting lugs, etc.

        GENERAL DIMENSIONS FOR FIG. PTP-1TYPE ATYPES B & CTYPES A, B, & C
        HANGER SIZEROD SIZECASING DIA.BOTT. PLATE. DIA.CASING LENGTHLOADED LENGTH XCASING LENGTHLUG HOLE SIZEHEIGHT OF PINCLEVIS OPENINGTHICKNESSLOADED LENGTH XAPPROX. WEIGHT OF EACH
        ACDBMIN.MAX.BEHRSTMIN.MAX.lb.
        001/246  1/84  7/85  11/166  15/164  7/811/161  1/21  1/47/81/48  7/169  11/165
        101/246  1/85  1/85  7/87  1/85  1/811/161  1/21  1/47/81/48  5/89  7/86
        201/246  1/85  3/4 6  9/167  13/165  3/411/161  1/21  1/47/81/49  5/1610  9/167
        301/25  9/167  5/85  1/4 6  1/87  3/85  1/411/161  1/21  1/47/81/48  7/810  1/89
        401/25  9/167  5/85  5/86  5/167  9/165  5/811/161  1/21  1/47/81/49  1/1610  5/1610
        501/25  9/167  5/866  7/88  1/8611/161  1/21  1/47/81/49  5/810  7/811
        605/86  5/8 8  7/867  3/168  7/16613/161  1/21  1/41  1/161/49  15/1611  3/1617
        705/86  5/8 8  7/8 6  5/87  7/89  1/86  5/813/161  1/21  1/41  1/161/410  5/811  7/820
        805/86  5/8 8  7/86  7/88  1/49  1/26  7/813/161  1/21  1/41  1/161/41112  1/421
        903/48  5/8 11  5/8 7  1/48  1/89  3/87  1/415/161  1/21  1/41   1/43/810  7/812  1/846
        1003/48  5/8 11  5/8 7  3/48  7/169  11/167  3/415/161  1/21  1/41  1/43/811  3/1612  7/1652
        1103/48  5/8 11  5/86  7/168  1/89  3/86  7/1615/161  1/21  1/41  1/43/810  7/812  1/845
        12018  5/8 11  5/87  1/89  1/1610  5/167  1/81  1/421  1/21  5/81/212  9/1613  13/1648
        13018  5/8 11  5/88  1/29  3/4118  1/21  1/431  1/21  5/81/213  1/414  1/259
        1401  1/48  5/8 11  5/8910  1/211  3/491  1/23225/815  1/216  3/462
        1501  1/48  5/8 11  5/88  7/811  5/1612  9/168  7/81  1/23225/816  5/1617  9/1674
        1601  1/28  5/8 11  5/8 10  1/213  1/214  3/410  1/21  3/432  1/22  3/83/41920  1/488
        1701  3/48  5/8 11  5/8 11  3/415  9/1616  13/1611  3/4232  1/22   3/83/42  11/1622  5/16106
        180212  3/4 N/A1517  1/818  3/8152  3/8432  7/83/424  1/825  3/8229
        1902  1/412  3/4 N/A 1618  3/819  5/8162  5/84  1/233  1/83/425  7/827  1/8256
        2002  1/212  3/4 N/A2022  3/823  5/8202  7/84  1/243  1/4130  7/832  1/8320
        2102  3/412  3/4 N/A20  5/823  1/424  1/220  5/83  1/84  1/243  5/8131  3/433371
        220312  3/4 N/A24  7/827  3/42924  7/83  3/8543  7/8136  3/438460

          Download PDF

          Fig. PTP-1 – Types D, E, & F – Short Variable Springs

          Fig. PTP-1-Types D, E, & F-Short Variable Springs
          ORDERING: Specify figure number, size, type, description, operating load and calculate amount & direction of pipe movement from installed to operating position. Please specify any non-standard requirements, i.e. internally guided load column, jacking bolt, lifting lugs, etc.

          HANGER SIZETYPES D & ETYPE F
          CASING LENGTHROD LENGTHNUT ALLOW.SPACER HEIGHT
          APPROX. WEIGHT
          OF EACH
          CASING LENGTHBOTTOM FLANGE
          BOTTOM FLANGE BOLT CIRCLEBOTTOM FLANGE
          LOAD COLUMN
          LOAD FLANGE
          LOADED LENGTH XAPPROX. WEIGHT
          BYKMlb.BTHK. x SQ.MIN.MAX.BOLTSDIA.THK. x SQ.MIN.MAX.lb.
          004  5/87  1/21  1/41  3/444  5/81/4 x 7  1/278  3/45/81.9003/16 x 3  13/16
          6  3/166  11/1610
          104  7/87  3/41  1/41  3/454  7/81/4 x 7  1/278  3/45/81.9003/16 x 3  13/16
          6  7/166  15/1610
          205  1/28  3/81  1/41  3/465  1/21/4 x 7  1/278  3/45/81.9003/16 x 3  13/16
          7  1/167  9/1611
          3057  7/81  1/41  3/4851/4 x 7  1/27  3/48  3/43/42.8753/16 x 5  1/4
          6  9/167  1/1617
          405  3/88  1/41  1/41  3/495  3/81/4 x 7  1/27  3/48  3/43/42.8753/16 x 5  1/4
          6  15/167  7/1618
          505  3/48  5/81  1/41  3/4105  3/41/4 x 7  1/27  3/48  3/43/42.8753/16 x 5  1/4
          7  5/167  13/1619
          605  3/49  1/161  1/21  3/4165  3/43/8 x 98  1/810  7/83/43.501/4 x 6  5/16
          7  5/167  13/1630
          706  3/89  11/161  1/21  3/419 6  5/83/8 x 98  1/810  7/83/43.501/4 x 6  5/16
          7  15/168  7/1632
          806  5/89  15/161  1/21  3/4206  3/83/8 x 98  1/810  7/83/43.501/4 x 6  5/16
          8  3/168  11/1633
          90711  1/41  3/41  3/44271/2 x 13  1/412  1/416  1/23/44.501/2 x 8  1/4
          8  9/169  9/1668
          1007  1/211  3/41  3/41  3/4487  1/21/2 x 13  1/412  1/416  1/23/44.501/2 x 8  1/4
          9  1/1610  1/1674
          1106  3/1610  11/1621  3/4416  3/161/2 x 13  1/412  1/416  1/23/44.501/2 x 8  1/4
          7  3/48  3/466
          1206  3/411  1/42  1/41  3/4436  3/41/2 x 13  1/412  1/416  1/23/44.501/2 x 8  1/4
          8  5/169  5/1668
          1308  1/812  7/82  1/21  3/4538  1/81/2 x 13  1/412  1/416  1/23/44.501/2 x 8  1/4
          9  11/1610  11/1671
          1408  5/813  1/82  1/21  3/4558  5/81/2 x 13  1/412  1/416  1/23/44.501/2 x 8  1/4
          10  3/1611  3/1681
          1508  1/214  1/831  3/4658  1/21/2 x 13  1/412  1/416  1/23/44.501/2 x 8  1/4
          10  1/1611  1/1686
          1601015  7/83  1/21  3/477101/2 x 13  1/412  1/416  1/23/44.501/2 x 8  1/4
          11  9/1612  9/1698
          17011  1/417  5/841  3/49111  1/41/2 x 13  1/412  1/416  1/23/44.501/2 x 8  1/4
          12  13/1613  13/16112
          18014  3/819  3/164  9/161  3/419611  7/85/8 x 17  1/4
          17  3/4223/45.5631/2 x 12  1/213  7/1614  7/16240
          19015  3/820  5/851  3/421612  7/85/8 x 17  1/4
          17  3/4223/45.5631/2 x 12  1/2
          14  7/1615  7/16245
          20019  1/423  5/165  9/161  3/427215  5/83/4 x 17  1/4
          17  3/4223/45.5631/2 x 12  1/2
          17  3/1618  3/16314
          21019  7/8256  1/41  3/430916  1/43/4 x 17  1/4
          17  3/4223/45.5631/2 x 12  1/2
          17  13/1618  13/16318
          22024  1/829  5/86  5/81  3/440120  1/23/4 x 17  1/4
          17  3/4223/45.5631/2 x 12  1/2
          22  1/1623  1/16413

            Download PDF

            Fig. PTP-1 – Type G – Short Variable Springs

            Fig. PTP-1-Type G-Short Variable Springs
            ORDERING: Specify figure number, size, type, description, operating load and calculate amount & direction of pipe movement from installed to operating position. Please specify any non-standard requirements, i.e. internally guided load column, jacking bolt, lifting lugs, etc.

            HANGER SIZETYPE G
            APPROX. WEIGHT OF EACHROD SIZECASING LENGTHCASING DIAMETERMINIMUM THREAD ENGAGE-MENTMAX. PIPE SIZEMAX. C-C DIM.CHANNEL SIZESPACING BETWEEN CHANNELSPZ
            lb.ABCFW
            00251/24  5/847/81224C 3 x 4.15/811  1/16
            10251/24  7/847/81224C 3 x 4.15/811
            20271/25  1/247/81224C 3 x 4.15/811  1/16
            30291/255  9/167/81630C 3 x 4.13/411  1/8
            40311/25  3/85  9/167/81630C 3 x 4.13/4115/16
            50321/25  3/45  9/167/81630C 3 x 4.13/411  1/8
            60455/85  3/46  5/81  1/162036C 3 x 4.1121  7/16
            70515/86  3/86  5/81  1/162036C 3 x 4.1121  1/2
            80535/86  5/86  5/81  1/162036C 3 x 4.1121  5/8
            901053/478  5/81  5/162036C 4 x 5.41  1/421  1/4
            1001173/47  1/28  5/81  5/162036C 4 x 5.41  1/421  1/16
            1101013/46  3/168  5/81  5/162036C 4 x 5.41  1/422  1/16
            12011216  3/48  5/81  9/162036C 5 x 6.71  1/21  1/22  5/16
            13013418  1/88  5/81  3/42036C 5 x 6.71  1/231  5/8
            1401391  1/48  5/88  5/81  3/41633C 5 x 6.71  1/231  7/8
            1501721  1/48  1/28  5/81   7/82036C 6 x 10.52  1/812  15/16
            1602021  1/2108  5/82  3/162036C 8 x 11.52  1/823  1/2
            1702381  3/411  1/48  5/82  7/162036C 8 x 11.52  1/824  5/16
            180488214  3/812  3/42  13/162042C 12 x 20.72  3/81/22  5/8
            1905392  1/415  3/812  3/43  1/162042C 12 x 20.72  5/812  7/8
            2006692  1/219  1/412  3/43  5/162040C 12 x 20.72  7/812  7/8
            2108272  3/419  7/812  3/43  11/162448C 15 x 33.93   1/813  1/8
            2201006324  1/812  3/43  15/162448C 15 x 33.93  3/833  3/8

              Download PDF

              Fig. PTP-2 – Types A, B, & C – Standard Variable Springs

              Fig. PTP-2-Types A, B, & C-Standard Variable Springs
              ORDERING: Specify figure number, size, type, description, operating load and calculated amount and direction of pipe movement from installed to operating position. Please specify any non-standard requirements, i.e. internally guided load column, jacking bolt, lifting lugs, etc.

              GENERAL DIMENSIONS FOR FIG. PTP-2TYPE ATYPES B & CTYPES A, B & C
              HANGER SIZEROD SIZECASING DIAMETERBOTT. PLATE DIA.CASING LENGTHLOADED LENGTH XCASING LENGTHLUG HOLE SIZEHEIGHT OF PINCLEVIS OPENINGTHICKNESSLOADED LENGTH XAPPROX. WEIGHT OF EACH
              ACDBMIN.MAX.BEHRSTMIN.MAX.lb.
              001/246  1/87  1/47  9/1610  1/167  1/411/161  1/21  1/47/81/410  5/1612  13/167
              101/246  1/88  3/328  5/1610  13/168  3/3211/161  1/21  1/47/81/411  1/1613  9/168
              201/246  1/88  7/89  1/1611  9/168  7/811/161  1/21  1/47/81/411  13/1614  5/169
              301/25  9/167  5/87  15/168  7/1610  15/167  15/1611/161  1/21  1/47/81/411  3/1613  11/1612
              401/25  9/167  5/88  1/28  3/411  1/48  1/211/161  1/21  1/47/81/411  1/21414
              501/25  9/167  5/89  1/49  5/812  1/89  1/411/161  1/21  1/47/81/412  3/814  7/815
              605/86  5/88  7/89  3/169  11/1612  3/169  3/1613/161  1/21  1/41  1/161/412  7/1614  15/1624
              705/86  5/88  7/810  1/810  3/413  1/410  1/813/161  1/21  1/41  1/161/413  1/21627
              805/86  5/88  7/810  5/811  1/413  3/410  5/813/161  1/21  1/41  1/161/41416  1/229
              903/48  5/811  5/810  11/1612  1/414  3/410  11/1615/161  1/21  1/41  1/43/81517  1/256
              1003/48  5/811  5/811  7/81315  1/211  7/815/161  1/21  1/41  1/43/815  3/418  1/462
              1103/48  5/811  5/89  11/1611  7/1613  15/169  11/1615/1621  1/41  1/43/814  3/1616  11/1656
              12018  5/811  5/810  5/812  1/1614  9/1610  5/81  1/421  1/21  5/81/215  9/1618  1/1661
              13018  5/811  5/813  1/813  3/416  1/413  1/81  1/431   1/21  5/81/217  1/419  3/479
              1401  1/48  5/811  5/813  5/814  1/21713  5/81  1/23225/819  1/22284
              1501  1/48  5/811  5/813  1/215  1/817  5/813  1/21  1/23225/820  1/822  5/8100
              1601  1/28  5/811  5/816  1/818  1/820  5/816  1/81  3/432  1/22  3/83/423  5/826  1/8124
              1701  3/48  5/811  5/818  1/420  15/1623  7/1618  1/4232  1/22  3/83/426  7/1628  15/16154
              180212  3/4N/A20  1/221  1/823  5/820  1/22   3/8432  7/83/428  1/830  5/8301
              1902  1/412  3/4N/A22  3/423  5/826  1/822  3/42  5/84  1/233  1/83/431  1/833  5/8348
              2002  1/212  3/4N/A27  7/828  3/431  1/427  7/82  7/84  1/243  1/4137  1/439  3/4456
              2102  3/412  3/4N/A30  9/1631  1/1633  9/1630  9/163  1/84  1/243  5/8139  9/1642  1/16528
              220312  3/4N/A36  1/437  3/1639  11/1636  1/43  3/8543   7/8146  3/1648  11/16684

                Download PDF

                Fig. PTP-2 – Types D, E, & F – Standard Variable Springs

                Fig. PTP-2-Types D, E, & F-Standard Variable Springs
                ORDERING: Specify figure number, size, type, description, operating load and calculated amount and direction of pipe movement from installed to operating position. Please specify any non-standard requirements, i.e. internally guided load column, jacking bolt, lifting lugs, etc.

                HANGER SIZETYPES D & ETYPE F
                CASING LENGTHROD LENGTH
                NUT ALLOW.SPACER HEIGHT
                APPROX. WEIGHT OF EACHCASING LENGTHBOTTOM FLANGE
                BOTTOM FLANGE BOLT CIRCLEBOTTOM FLANGE BOLTSLOAD COLUMN DIA.LOAD FLANGELOADED LENGTH XAPPROX. WEIGHT
                BYKMlb.BTHK. x SQ.
                MIN.MAX.DIA.THK. x SQ.MIN.MAX.lb.
                00711  1/161  1/43  1/8671/4 x 7  1/278  3/45/81.9003/16 x 3  13/168  1/210  1/213
                107  27/3211  15/161  1/43  1/877  27/321/4 x 7  1/278  3/45/81.9003/16 x 3  13/169  11/3211  11/3213
                208  5/812  11/161  1/43  1/888  5/81/4 x 7  1/278  3/45/81.9003/16 x 3  13/1610  1/812  1/814
                307  11/1611  11/161  1/43  1/8117  11/161/4 x 7  1/27  3/48  3/43/42.8753/16 x 5  1/49  3/1611  3/1621
                408  1/412  5/161  1/43  1/8128  1/41/4 x 7  1/27  3/48  3/43/42.8753/16 x 5  1/49  3/411  3/423
                509131  1/43  1/81491/4 x 7  1/27  3/48  3/43/42.8753/16 x 5  1/410  1/212  1/224
                608  15/1613  5/161  1/23228  15/163/8 x 98  1/810  7/83/43.5001/4 x 6  5/1610  7/1612  7/1637
                709  7/814  1/41  1/23259  7/83/8 x 98  1/810  7/83/43.5001/4 x 6  5/1611  3/813  3/843
                8010  3/814  3/41  1/232610  3/83/8 x 98  1/810  7/83/43.5001/4 x 6  5/1611  7/813  7/844
                9010  7/1615  5/81  3/435110  7/161/2 x 13  1/412  1/416  1/23/44.5001/2 x 8  1/411  15/1613  15/1681
                10011  5/816  7/81  3/435811  5/81/2 x 13  1/412  1/416  1/23/44.5001/2 x 8  1/413  1/815  1/888
                1109  7/1614  15/1623519  7/161/2 x 13  1/412  1/416  1/23/44.5001/2 x 8  1/410  15/1612  15/1680
                12010  1/415  13/162  1/435610  1/41/2 x 13  1/412  1/416  1/23/44.5001/2 x 8  1/411  3/413  3/485
                13012  3/418  5/82  1/237312  3/41/2 x 13  1/412  1/416  1/23/44.5001/2 x 8  1/414  1/416  1/4105
                14013  1/418  3/42  1/237713  1/41/2 x 13  1/412  1/416  1/23/44.5001/2 x 8  1/414  3/416  3/4109
                15013  1/819  3/4338813  1/81/2 x 13  1/412  1/416  1/23/44.5001/2 x 8  1/414  5/816  5/8116
                16015  5/822  9/163  1/2310715  5/81/2 x 13  1/412  1/416  1/23/44.5001/2 x 8  1/417  1/819  1/8136
                17017  3/425  1/84313317  3/41/2 x 13  1/412  1/416  1/23/44.5001/2 x 8  1/419  1/421  1/4159
                18019  7/825  11/164  9/16326217  3/85/8 x 17  1/417  3/4223/45.5631/2 x 12  1/218  7/820  7/8313
                19022  1/828  3/85330019  5/85/8 x 17  1/417  3/4223/45.5631/2 x 12  1/221  1/823  1/8350
                20027  1/832  3/165  9/16337023  1/23/4 x 17  1/417  3/4223/45.5631/2 x 12  1/22527441
                21029  13/1635  9/166  1/4345525  13/163/4 x 17  1/417  3/4223/45.5631/2 x 12  1/227  5/1629  5/16466
                22035  1/2426  5/8350531  7/83/4 x 17  1/417  3/4223/45.5631/2 x 12  1/233  3/835  3/8624

                  Download PDF

                  Fig. PTP-2 – Type G – Standard Variable Springs

                  Fig. PTP-2-Type G-Standard Variable Springs
                  ORDERING: Specify figure number, size, type, description, operating load and calculated amount and direction of pipe movement from installed to operating position. Please specify any non-standard requirements, i.e. internally guided load column, jacking bolt, lifting lugs, etc.

                  HANGER SIZETYPE G
                  APPROX. WEIGHTROD SIZECASING LENGTH
                  CASING DIAMETER
                  MINIMUM THREAD ENGAGEMENTMAX. PIPE SIZE
                  MAX. C-C DIM.
                  CHANNEL SIZE
                  SPACING BETWEEN CHANNELSPZ
                  lb.ABCFW
                  00281/2747/81224C 3 x 4.15/81  1/213/16
                  10291/27  27/3247/81224C 3 x 4.15/81  1/223/32
                  20301/28  5/847/81224C 3 x 4.15/81  1/211/16
                  30371/27  11/165  9/167/81630C 3 x 4.13/421
                  40381/28  1/45  9/167/81630C 3 x 4.13/423/4
                  50391/295  9/167/81630C 3 x 4.13/427/8
                  60575/88  15/166  5/81  1/162036C 3 x 4.1121
                  70635/89  7/86  5/81  1/162036C 3 x 4.1121  1/8
                  80675/810  3/86  5/81  1/162036C 3 x 4.1121  1/8
                  901233/410  7/168  5/81  5/162036C 4 x 5.41  1/432  3/16
                  1001373/411  5/88  5/81  5/162036C 4 x 5.41  1/431  3/4
                  1101253/49  7/168  5/81  5/162036C 4 x 5.41  1/432  3/8
                  120137110  1/48  5/81  9/162036C 5 x 6.71  1/242  1/16
                  130175112  3/48  5/81  3/42036C 5 x 6.71  1/241  1/4
                  1401831  1/413  1/48  5/81  3/41633C 5 x 6.71  1/241  1/2
                  1502241  1/413  1/88  5/81  7/82036C 6 x 10.52  1/842  3/8
                  1602701  1/215  5/88  5/82  3/162036C 8 x 11.52  1/842  3/4
                  1703261  3/417  3/48  5/82  7/162036C 8 x 11.52  1/843  7/16
                  180630219  7/812  3/42  13/162042C 12 x 20.72  3/841  3/8
                  1907232  1/422  1/812  3/43  1/162042C 12 x 20.72  5/841  5/8
                  2009332  1/227  1/812  3/43  5/162040C 12 x 20.72  7/841  5/8
                  21011372  3/429  13/1612  3/43  11/162448C 15 x 33.93  1/841  1/4
                  2201436335  1/212  3/43  15/162448C 15 x 33.93  3/841  11/16

                    Download PDF

                    Fig. PTP-4 – Types A, B, & C – Double Variable Springs

                    Fig. PTP-4-Types A, B, & C-Double Variable Springs
                    ORDERING: Specify figure number, size, type, description, operating load and calculated amount and direction of pipe movement from installed to operating position. Please specify any non-standard requirements, i.e. internally guided load column, jacking bolt, lifting lugs, etc.

                    GENERAL DMENSIONS FOR FIG. PTP-4TYPE ATYPES B & CTYPES A, B & C
                    HANGER SIZEROD SIZECASING DIA.BOTT. PLATE DIA.CASING LENGTHLOADED LENGTH XCASING LENGTHLUG HOLE SIZEHEIGHT OF PINRCLEVIS OPENINGTHK.LOADED LENGTH XAPPROX. WEIGHT OF EACH
                    ACDBMIN.MAX.BEHSTMIX.MAX.lb.
                    001/246  1/813  1/214  3/819  3/813  1/211/161  1/21  1/47/81/414  3/822  1/811
                    101/246  1/815  1/415  15/1620  15/1615  1/411/161  1/21  1/47/81/415  15/1623  11/1613
                    201/246  1/816  3/417  7/1622  7/1616  3/411/161  1/21  1/47/81/417  7/1625  3/1615
                    301/25  9/167  5/814  7/815  3/420  3/414  7/811/161  1/21  1/47/81/415  3/423  1/220
                    401/25  9/167  5/81616  1/1621  1/161611/161  1/21  1/47/81/416  1/1623  13/1623
                    501/25  9/167  5/817  1/218  7/1623  7/1617  1/211/161  1/21  1/47/81/418  7/1626  3/1625
                    605/86  5/88  7/817  1/418  3/823  3/817  1/413/161  1/21  1/41  1/161/418  3/826  1/838
                    705/86  5/88  7/819  1/820  3/825  3/819  1/813/161  1/21  1/41  1/161/420  3/828  1/846
                    805/86  5/88  7/820  1/821  3/826  3/820  1/813/161  1/21  1/41  1/161/421  3/829  1/858
                    903/48  5/811  5/820  1/1620  7/825  7/820  1/1615/161  1/21  1/41  1/43/820  7/828  5/887
                    1003/48  5/811  5/822  7/1623  5/1628  5/1622  7/1615/161  1/21  1/41  1/43/823  5/1631  1/16104
                    1103/48  5/811  5/818  1/1619  11/1624  11/1618  1/1615/161  1/21  1/41  1/43/819  11/1627  7/1688
                    12018  5/811  5/819  5/821  9/1626  9/1619  5/81  1/421  1/21  5/81/221  9/1630  1/1698
                    13018  5/811  5/824  5/825  7/830  7/824  5/81  1/421  1/21  5/81/225  7/834  3/8134
                    1401  1/48  5/811  5/825  3/826  7/831  7/825  3/81  1/23225/826  7/836  7/8143
                    1501  1/48  5/811  5/825  3/828  1/433  1/425  3/81  1/23225/828  1/438  1/4158
                    1601  1/28  5/811  5/83033  1/1638  1/16301  3/432  1/22  3/83/433  1/1643  9/16204
                    1701  3/48  5/811  5/834  1/438  3/1643  3/1634  1/4232  1/22  3/83/438  3/1648  11/16259
                    180212  3/4N/A35  1/237  5/842  5/835  1/22  3/8432  7/83/437  5/849  5/8482
                    1902  1/412  3/4N/A4042  3/847  3/8402  5/84  1/233  1/83/442  3/854  7/8570
                    2002  1/212  3/4N/A48  3/850  3/455  3/448  3/82  7/84  1/243  1/4150  3/464  1/4772
                    2102  3/412  3/4N/A5355  5/860  5/8533  1/84  1/243  5/8155v5/869  1/8910
                    220312  3/4N/A65  1/8687365  1/83  3/8543  7/8168821210

                      Download PDF

                      Fig. PTP-4 – Types D, E, & F – Double Variable Springs

                      Fig. PTP-4-Types D, E, & F-Double Variable Springs
                      ORDERING: Specify figure number, size, type, description, operating load and calculated amount and direction of pipe movement from installed to operating position. Please specify any non-standard requirements, i.e. internally guided load column, jacking bolt, lifting lugs, etc.

                      HANGER SIZETYPES D & ETYPE F
                      CASING LENGTHROD LENGTHNUT ALLOW.SPACER HEIGHTAPPROX. WEIGHTCASING LENGTHBOTTOM FLANGEBOTTOM FLANGE BOLT CIRCLEBOTTOM FLANGE BOLTSLOAD COLUMN DIA.LOAD FLANGELOADED LENGTH XAPPROX. WEIGHT
                      BYKMlb.BTHK. X SQ.MIN.MAX.THK. X SQ.MIN.MAX .lb.
                      0013  1/419  3/81  1/45  1/21113  1/41/4 x 7  1/278  3/45/81.9003/16 x 3  13/1614  7/816  7/819
                      101521  1/81  1/45  1/213151/4 x 7  1/278  3/45/81.9003/16 x 3  13/1616  5/818  5/820
                      2016  1/222  5/81  1/45  1/21516  1/21/4 x 7  1/278  3/45/81.9003/16 x 3  13/1618  1/820  1/822
                      3014  5/820  3/41  1/45  1/21914  5/81/4 x 7  1/27  3/48  3/43/42.8753/16 x 5  1/416  1/418  1/433
                      4015  3/4221  1/45  1/22215  3/41/4 x 7  1/27  3/48  3/43/42.8753/16 x 5  1/417  3/819  3/837
                      5017  1/423  3/81  1/45  1/22417  1/41/4 x 7  1/27  3/48  3/43/42.8753/16 x 5  1/418  7/820  7/839
                      601723  11/161  1/25  1/237173/8 x 98  1/810  7/83/43.5001/4 x 6  5/1618  5/820  5/859
                      7018  7/825  5/81  1/25  1/24518  7/83/8 x 98  1/810  7/83/43.5001/4 x 6  5/1620  1/222  1/269
                      8019  7/826  9/161  1/25  1/24919  7/83/8 x 98  1/810  7/83/43.5001/4 x 6  5/1621  1/223  1/272
                      9019  13/1627  7/161  3/45  1/28419  13/161/2 x 13  1/412  1/416  1/23/44.5001/2 x 8  1/421  7/1623  7/16126
                      10022  3/1629  7/81  3/45  1/29822  3/161/2 x 13  1/412  1/416  1/23/44.5001/2 x 8  1/423  13/1625  13/16140
                      11017  13/1625  3/425  1/28517  13/161/2 x 13  1/412  1/416  1/23/44.5001/2 x 8  1/419  7/1621  7/16124
                      12019  1/427  1/42  1/45  1/29419  1/41/2 x 13  1/412  1/416  1/23/44.5001/2 x 8  1/420  7/822  7/8134
                      13024  1/432  5/82  1/25  1/212924  1/41/2 x 13  1/412  1/416  1/23/44.5001/2 x 8  1/425  7/827  7/8171
                      1402532  7/82  1/25  1/2137251/2 x 13  1/412  1/416  1/23/44.5001/2 x 8  1/426  5/828  5/8178
                      1502533  3/435  1/2149251/2 x 13  1/412  1/416  1/23/44.5001/2 x 8  1/426  5/828  5/8187
                      16029  1/238  7/83  1/25  1/218829  1/21/2 x 13  1/412  1/416  1/23/44.5001/2 x 8  1/431  1/833  1/8227
                      17033  3/443  1/245  1/223333  3/41/2 x 13  1/412  1/416  1/23/44.5001/2 x 8  1/435  3/837  3/8273
                      18034  7/843  3/164  9/165  1/244732  3/85/8 x 17  1/417  3/4223/45.5631/2 x 12  1/23436520
                      19039  3/848  1/855  1/251836  7/85/8 x 17  1/417  3/4223/45.5631/2 x 12  1/238  1/240  1/2594
                      20047  5/855  3/165  9/165  1/2693443/4 x 17  1/417  3/4223/45.5631/2 x 12  1/245  5/847  5/8777
                      21052  1/460  5/86  1/45  1/281548  5/83/4 x 17  1/417  3/4223/45.5631/2 x 12  1/250  1/452  1/4842
                      22064  3/873  1/86  5/85  1/2111060  3/83/4 x 17  1/417  3/4223/45.5631/2 x 12  1/262641154

                        Download PDF

                        Fig. PTP-4 – Type G – Double Variable Springs

                        Fig. PTP-4-Type G-Double Variable Springs
                        ORDERING: Specify figure number, size, type, description, operating load and calculated amount and direction of pipe movement from installed to operating position. Please specify any non-standard requirements, i.e. internally guided load column, jacking bolt, lifting lugs, etc.

                        HANGER SIZETYPE G
                        APPROX. WEIGHT OF EACHROD SIZECASING LENGTHCASING DIAMETERMINIMUM THREAD ENGAGEMENTMAX. PIPE SIZEMAX. C-C DIM.CHANNEL SIZESPACING BETWEEN CHANNELSPZ
                        lb.ABCFW
                        00351/213  1/447/81224C 3 x 4.15/81 1/21  7/8
                        10391/21547/81224C 3 x 4.15/81 1/21  11/16
                        20431/216  1/247/81224C 3 x 4.15/81 1/21  11/16
                        30511/214  5/85  9/167/81630C 3 x 4.13/421  7/8
                        40571/215  3/45  9/167/81630C 3 x 4.13/421  1/16
                        50611/217  1/45  9/167/81630C 3 x 4.13/421  15/16
                        60875/8176  5/81  1/162036C 3 x 4.1122  1/8
                        701035/818  7/86  5/81  1/162036C 3 x 4.1122  1/4
                        801275/819  7/86  5/81  1/162036C 3 x 4.1122  1/4
                        901873/419  13/168  5/81  5/162036C 4 x 5.41  1/431  15/16
                        1002213/422  3/168  5/81  5/162036C 4 x 5.41  1/432
                        1101893/417  13/168  5/81  5/162036C 4 x 5.41  1/432  3/4
                        120213119  1/48  5/81  9/162036C 5 x 6.71  1/243  1/16
                        130285124  1/48  5/81  3/42036C 5 x 6.71  1/242  3/8
                        1403031  1/4258  5/81  3/41633C 5 x 6.71  1/242  5/8
                        1503421  1/4258  5/81  7/82036C 6 x 10.52  1/844  1/8
                        1604341  1/229  1/28  5/82  3/162036C 8 x 11.52  1/844  5/16
                        1705441  3/433  3/48  5/82  7/162036C 8 x 11.52  1/845  3/16
                        180996234  7/812  3/42  13/162042C 12 x 20.72  3/843  3/8
                        19011712  1/439  3/812  3/43  1/162042C 12 x 20.72  5/843  5/8
                        20015732  1/247  5/812  3/43  5/162040C 12 x 20.72  7/843  5/8
                        21019052  3/452  1/412  3/43  11/162448C 15 x 33.93  1/843  7/8
                        2202506364  3/812  3/43  15/162448C 15 x 33.93  3/844  1/8

                          Download PDF

                          Fig. PTP-6 – Types A, B, & C – Triple Variable Springs

                          Fig. PTP-6-Types A, B, & C-Triple Variable Springs
                          ORDERING: Specify figure number, size, type, description, operating load and calculated amount and direction of pipe movement from installed to operating position. Please specify any non-standard requirements, i.e. internally guided load column, jacking bolt, lifting lugs, etc.

                          GENERAL DMENSIONS FOR FIG. PTP-6TYPE A
                          TYPES B & CTYPES A, B & C
                          HANGER SIZEROD SIZECASING DIA.BOTT. PLATE DIA.CASING LENGTHLOADED LENGTH XCASING LENGTHLUG HOLE SIZEHEIGHT OF PINRCLEVIS OPENINGTHK.LOADED LENGTH XAPPROX. WEIGHT OF EACH
                          ACDBMIN.MAX.BEHSTMIN.MAX.lb.
                          001/246  1/819  1/219  1/22719  1/211/161  1/21  1/47/81/422  1/429  3/417
                          101/246  1/822  1/823  1/830  5/822  1/811/161  1/21  1/47/81/425  7/833  3/820
                          201/246  1/824  3/825  3/832  7/824  3/811/161  1/21  1/47/81/428  1/835  5/823
                          301/25  9/167  5/821  5/822  5/830  1/821  5/811/161  1/21  1/47/81/425  3/832  7/830
                          401/25  9/167  5/823  1/424  1/431  3/423  1/411/161  1/21  1/47/81/42734  1/235
                          501/25  9/167  5/825  1/226  1/23425  1/211/161  1/21  1/47/81/429  1/436  3/438
                          605/86  5/88  7/825  1/826  1/433  3/425  1/813/161  1/21  1/41  1/161/42936  1/257
                          705/86  5/88  7/827  7/829  1/836  5/827  7/813/161  1/21  1/41  1/161/431  7/839  3/869
                          805/86  5/88  7/829  3/830  5/838  1/829  3/813/161  1/21  1/41  1/161/433  3/840  7/887
                          903/48  5/811  5/829  3/1630  5/1637  13/1629  3/1615/161  1/21  1/41  1/43/833  1/1640  91/6131
                          1003/48  5/811  5/832  3/433  7/841  3/832  3/415/161  1/21  1/41  1/43/836  5/844  1/8156
                          1103/48  5/811  5/826  3/1627  13/1635  5/1626  3/1615/161  1/21  1/41  1/43/830  9/1638  1/16132
                          12018  5/811  5/828  3/830  5/1637  13/1628  3/81  1/421  1/21  5/81/233  13/1641  5/16147
                          13018  5/811  5/835  7/837  1/844  5/835  7/81  1/421  1/21  5/81/240  5/848  1/8201
                          1401  1/48  5/811  5/836  3/438  1/445  3/436  3/41  1/23225/843  1/450  3/4215
                          1501  1/48  5/811  5/836  3/439  5/1646  13/1636  3/41  1/23225/844  5/1651  13/16237
                          1601  1/28  5/811  5/843  5/846  11/1654  3/1643  5/81  3/432  1/22  3/83/452  3/1659  11/16306
                          1701  3/48  5/811  7/85053  15/1661  7/1650232  1/22  3/83/459  7/1666  15/16389
                          180212  3/4N/A50  1/452  15/1660  7/1650  1/42  3/8432  7/83/459  15/1667  7/16723
                          1902  1/412  3/4N/A5759  15/1667  7/16572  5/84  1/233  1/83/467  7/1674  15/16855
                          2002  1/212  3/4N/A67  3/870  3/1677  11/1667  3/82  7/84  1/243  1/4178  11/1686  3/161158
                          2102  3/412  3/4N/A73  7/877  7/1684  15/1673  7/83  1/84  1/243  5/8185  15/1693  7/161365
                          220312  3/4N/A92  1/895  15/16103  7/1692  1/83  3/8543  7/81104  15/16112   7/161815

                            Download PDF

                            Fig. PTP-6 – Types D, E, & F – Triple Variable Springs

                            Fig. PTP-6-Types D, E, & F – Triple Variable Springs
                            ORDERING: Specify figure number, size, type, description, operating load and calculated amount and direction of pipe movement from installed to operating position. Please specify any non-standard requirements, i.e. internally guided load column, jacking bolt, lifting lugs, etc.

                            HANGER SIZETYPES D & ETYPE F
                            CASING LENGTHROD LENGTHNUT ALLOW.SPACER HEIGHTAPPROX. WEIGHTCASING LENGTHBOTTOM FLANGEBOTTOM FLANGE BOLT CIRCLEBOTTOM FLANGE BOLTSLOAD COLUMN DIA.LOAD FLANGELOADED LENGTH XAPPROX. WEIGHT
                            BYKMlb.BTHK. X SQ.MIN.MAX.THK. X SQ.MIN.MAX .lb.
                            0019  1/428  3/161  1/48  1/21719  1/41/4 x 7  1/278  3/45/81.9003/16 x 3  13/1620  7/822  7/829
                            1021  7/8311  1/48  1/22021  7/81/4 x 7  1/278  3/45/81.9003/16 x 3  13/1623  1/225  1/230
                            2024  1/833  1/41  1/48  1/22324  1/81/4 x 7  1/278  3/45/81.9003/16 x 3  13/1625  3/427  3/433
                            3021  3/830  7/161  1/48  1/22921  3/81/4 x 7  1/27  3/48  3/43/42.8753/16 x 5  1/4232550
                            402332  5/161  1/48  1/233231/4 x 7  1/27  3/48  3/43/42.8753/16 x 5  1/424  5/826  5/856
                            5025  1/434  3/81  1/48  1/23625  1/41/4 x 7  1/27  3/48  3/43/42.8753/16 x 5  1/426  7/828  7/859
                            6024  7/834  5/81  1/28  1/25624  7/83/8 x 98  1/810  7/83/43.5001/4 x 6  5/1626  1/228  1/289
                            7027  5/837  9/161  1/28  1/26827  5/83/8 x 98  1/810  7/83/43.5001/4 x 6  5/1629  1/431  1/4104
                            8029  1/838  15/161  1/28  1/27429  1/83/8 x 98  1/810  7/83/43.5001/4 x 6  5/1630  3/432  3/4108
                            9028  15/1639  11/161  3/48  1/212628  15/161/2 x 13  1/412  1/416  1/23/44.5001/2 x 8  1/430  9/1632  9/16189
                            10032  1/243  1/81  3/48  1/214732  1/21/2 x 13  1/412  1/416  1/23/44.5001/2 x 8  1/434  1/836  1/8210
                            11025  15/1637  1/1628  1/212825  15/161/2 x 13  1/412  1/416  1/23/44.5001/2 x 8   /427  9/1629  9/16186
                            1202839  3/162  1/48  1/2141281/2 x 13  1/412  1/416  1/23/44.5001/2 x 8  1/429  5/831  5/8201
                            13035  1/247  1/82  1/28  1/219435  1/21/2 x 13  1/412  1/416  1/23/44.5001/2 x 8  1/437  1/839  1/8257
                            14036  3/847  1/22  1/28  1/220636  3/81/2 x 13  1/412  1/416  1/23/44.5001/2 x 8  1/43840267
                            15036  3/848  1/438  1/222436  3/81/2 x 13  1/412  1/416  1/23/44.5001/2 x 8  1/43840281
                            16043  1/855  11/163  1/28  1/228243  1/81/2 x 13  1/412  1/416  1/23/44.5001/2 x 8  1/444  3/446  3/4341
                            17049  1/262  1/848  1/235049  1/21/2 x 13  1/412  1/416  1/23/44.5001/2 x 8  1/451  1/853  1/8410
                            18049  5/861  3/164  3/168  1/267147  1/85/8 x 17  1/417  3/4223/45.5631/2 x 12  1/248  3/450  3/4780
                            19056  3/863  3/858  1/277753  7/85/8 x 17  1/417  3/4223/45.5631/2 x 12  1/255  1/257  1/2891
                            20066  5/878  1/165  9/168  1/21040643/4 x 17  1/417  3/4223/45.5631/2 x 12  1/264  5/866  5/81166
                            21073  1/886  3/166  1/48  1/2122370  7/83/4 x 17  1/417  3/4223/45.5631/2 x 12  1/271  1/873  1/81263
                            22091  3/8107  3/46  5/88  1/2166589  1/83/4 x 17  1/417  3/4223/45.5631/2 x 12  1/289911731

                              Download PDF

                              Fig. PTP-6 – Type G – Triple Variable Springs

                              Fig. PTP-6-Type G-Triple Variable Springs
                              ORDERING: Specify figure number, size, type, description, operating load and calculated amount and direction of pipe movement from installed to operating position. Please specify any non-standard requirements, i.e. internally guided load column, jacking bolt, lifting lugs, etc.

                              HANGER SIZETYPE G
                              APPROX. WEIGHT OF EACHROD SIZECASING LENGTHCASING DIAMETERMINIMUM THREAD ENGAGEMENTMAX. PIPE SIZEMAX. C-C DIM.CHANNEL SIZESPACING BETWEEN CHANNELSPZ
                              lbs.ABCFW
                              00531/219  1/447/81224C 3 x 4.15/81  1/21  1/2
                              10591/221  7/847/81224C 3 x 4.15/81  1/22  1/2
                              20651/224  1/847/81224C 3 x 4.15/81  1/22  1/2
                              30771/221  3/85  9/167/81630C 3 x 4.13/422  1/2
                              40861/2235  9/167/81630C 3 x 4.13/422  1/2
                              50921/225  1/45  9/167/81630C 3 x 4.13/422  1/2
                              601315/824  7/86  5/81  1/162036C 3 x 4.1122  5/8
                              701555/827  5/86  5/81  1/162036C 3 x 4.1122  3/4
                              801915/829  1/86  5/81  1/162036C 3 x 4.1122  3/4
                              902813/428  15/168  5/81  5/162036C 4 x 5.41  1/432  3/4
                              1003323/432  1/28  5/81  5/162036C 4 x 5.41  1/432  3/4
                              1102843/425  15/168  5/81  5/162036C 4 x 5.41  1/433  1/4
                              1203201288  5/81  9/162036C 5 x 6.71  1/243  9/16
                              130428135  1/28  5/81  3/42036C 5 x 6.71  1/242  7/8
                              1404551  1/436  3/88  5/81  3/41633C 5 x 6.71  1/243  1/8
                              1505131  1/436  3/88  5/81  7/82036C 6 x 10.52  1/844  5/16
                              1606511  1/243  1/88   5/82  3/162036C 8 x 11.52  1/844  13/16
                              1708161  3/449  1/28  5/82  7/162036C 8 x 11.52  1/845  11/16
                              1801494249  5/812  3/42  13/162042C 12 x 20.72  3/844  7/16
                              19017472  1/456  3/812  3/43  1/162042C 12 x 20.72  5/844  11/16
                              20023602  1/266  5/812  3/43  5/162040C 12 x 20.72  7/844  9/16
                              21028582  3/473  1/812  3/43  11/162448C 15 x 33.93  1/845  5/16
                              2203759391  3/812  3/43  15/162448C 15 x 33.93  3/845  9/16

                                Download PDF

                                Fig. PTP-8 – Types A, B, & C – Quadruple Variable Springs

                                Fig. PTP-8-Types A, B, & C-Quadruple Variable Springs
                                ORDERING: Specify figure number, size, type, description, operating load and calculated amount and direction of pipe movement from installed to operating position. Please specify any non-standard requirements, i.e. internally guided load column, jacking bolt, lifting lugs, etc

                                GENERAL DMENSIONS FOR FIG. PTP-8TYPE ATYPES B & CTYPES A, B & C
                                HANGER SIZEROD SIZECASING DIA.CASING DIA.CASING LENGTHLOADED LENGTH XCASING LENGTHLUG HOLE SIZEHEIGHT OF PINRCLEVIS OPENINGTHK.LOADED LENGTH XAPPROX. WEIGHT OF EACH
                                ACDBMIN.MAX.BEHSTMIN.MAX.lb.
                                001/246  1/825  1/226  1/235  1/225  1/211/161  1/21  1/47/81/429  1/438  1/422
                                101/246  1/82930392911/161  1/21  1/47/81/432  3/441  3/426
                                201/246  1/83233423211/161  1/21  1/47/81/435  3/444  3/430
                                301/25  9/167  5/82829382811/161  1/21  1/47/81/431  3/440  3/440
                                401/25  9/167  5/830  1/231  1/240  1/230  1/211/161  1/21  1/47/81/434  1/443  1/446
                                501/25  9/167  5/833  1/434  1/443  1/433  1/411/161  1/21  1/47/81/4374650
                                605/86  5/88  7/83334  1/443  1/43313/161  1/21  1/41  1/161/4374676
                                705/86  5/88  7/836  5/837  7/846  7/836  5/813/161  1/21  1/41  1/161/440  5/849  5/892
                                805/86  5/88  7/838  5/839  7/848  7/838  5/813/161  1/21  1/41  1/161/442  5/851  5/8116
                                903/48  5/811  5/838  3/839  1/248  1/238  3/815/161  1/21  1/41  1/43/842  1/451  1/4174
                                1003/48  5/811  5/843  1/843  1/452  1/443  1/815/161  1/21  1/41  1/43/84655208
                                1103/48  5/811  5/834  3/8364534  3/815/161  1/21  1/41  1/43/838  3/447  3/4176
                                12018  5/811  5/837  1/838  15/1647  15/1637  1/81  1/421  1/21  5/81/242  7/1651  7/16196
                                13018  5/811  5/847  1/848  3/857  3/847  1/81  1/421  1/21  5/81/251  7/860  7/8268
                                1401  1/48  5/811  5/848  1/849  5/858  5/848  1/81  1/23225/854  5/863  5/8286
                                1501  1/48  5/811  5/848  1/851  1/260  1/248  1/81  1/23225/856  1/265  1/2316
                                1601  1/28  5/811  5/857  3/858  13/1667  13/1657  3/81  3/432  1/22  3/83/464  5/1673  5/16408
                                1701  3/48  5/811  5/865  3/467  7/1676  7/1665  3/4232  1/22  3/83/472  15/1681  15/16518
                                180212  3/4N/A6567  11/1676  11/16652  3/8432  7/83/474  11/1683  11/16964
                                1902  1/412  3/4N/A7476  15/1685  15/16742  5/84  1/233  1/83/484  7/1693  7/161140
                                2002  1/212  3/4N/A87  5/890  5/1699  5/1687  5/82  7/84  1/243  1/4198  13/16107  13/161544
                                2102  3/412  3/4N/A96  7/8100  1/16109  1/1696  7/83  1/84  1/243  5/81108  9/16117  9/161820
                                220312  3/4N/A121  1/8124  9/16133  9/16121  1/83  3/8543  7/81133  9/16142  9/162420

                                  Download PDF

                                  Fig. PTP-8 – Types D, E, & F – Quadruple Variable Springs

                                  Fig. PTP-8-Types D, E, & F-Quadruple Variable Springs
                                  ORDERING: Specify figure number, size, type, description, operating load and calculated amount and direction of pipe movement from installed to operating position. Please specify any non-standard requirements, i.e. internally guided load column, jacking bolt, lifting lugs, etc.

                                  HANGER SIZETYPES D & ETYPE F
                                  CASING LENGTHROD LENGTHNUT ALLOW.SPACER HEIGHTAPPROX. WEIGHTCASING LENGTHBOTTOM FLANGEBOTTOM FLANGE BOLT CIRCLEBOTTOM FLANGE BOLTSLOAD COLUMN DIA.LOAD FLANGELOADED LENGTH XAPPROX. WEIGHT
                                  BYKMlb.BTHK. X SQ.MIN.MAX.THK. X SQ.MIN.MAX .lb.
                                  0025  1/437  3/81  1/411  1/22225  1/41/4 x 7  1/278  3/45/81.9003/16 x 3  13/1626  7/828  7/838
                                  1028  3/440  7/81  1/411  1/22628  3/41/4 x 7  1/278  3/45/81.9003/16 x 3  13/1630  3/832  3/840
                                  2031  3/443  7/81  1/411  1/23031  3/41/4 x 7  1/278  3/45/81.9003/16 x 3  13/1633  3/835  3/844
                                  3027  3/440  1/81  1/411  1/23827  3/41/4 x 7  1/27  3/48  3/43/42.8753/16 x 5  1/429  3/831  3/866
                                  4030  1/442  5/81  1/411  1/24430  1/41/4 x 7  1/27  3/48  3/43/42.8753/16 x 5  1/431  7/833  7/874
                                  503345  3/81  1/411  1/248331/4 x 7  1/27  3/48  3/43/42.8753/16 x 5  1/434  5/836  5/878
                                  6032  3/445  5/81  1/211  1/27432  3/43/8 x 98  1/810  7/83/43.5001/4 x 6  5/1634  3/836  3/8118
                                  7036  3/849  7/161  1/211  1/29036  3/83/8 x 98  1/810  7/83/43.5001/4 x 6  5/163840138
                                  8038  3/851  5/161  1/211  1/29838  3/83/8 x 98  1/810  7/83/43.5001/4 x 6  5/164042144
                                  9038  1/852  1/161  3/411  1/216838  1/81/2 x 13  1/412  1/416  1/23/44.5001/2 x 8  1/439  3/441  3/4252
                                  10042  7/856  7/81  3/411  1/219642  7/81/2 x 13  1/412  1/416  1/23/44.5001/2 x 8  1/444  1/246  1/2282
                                  11034  1/848  3/8211  1/217034  1/81/2 x 13  1/412  1/416  1/23/44.5001/2 x 8  1/435  3/437  3/4248
                                  12036  3/451  1/82  1/411  1/218836  3/41/2 x 13  1/412  1/416  1/23/44.5001/2 x 8  1/438  3/840  3/8268
                                  13046  3/461  5/82  1/211  1/225846  3/41/2 x 13  1/412  1/416  1/23/44.5001/2 x 8  1/448  3/850  3/8342
                                  14047  3/462  1/82  1/211  1/227447  3/41/2 x 13  1/412  1/416  1/23/44.5001/2 x 8  1/449  3/851  3/8356
                                  15047  3/462  3/4311  1/239847  3/41/2 x 13  1/412  1/416  1/23/44.5001/2 x 8  1/449  3/851  3/8374
                                  16056  7/872  1/23  1/211  1/237656  7/81/2 x 13  1/412  1/416  1/23/44.5001/2 x 8  1/458  1/260  1/2454
                                  17065  1/481  1/4411  1/246665  1/41/2 x 13  1/412  1/416  1/23/44.5001/2 x 8  1/466  7/868  7/8546
                                  18064  3/879  3/164  9/1611  1/289461  7/85/8 x 17  1/417  3/4223/45.5631/2 x 12  1/263  1/265  1/21040
                                  19073  3/888  5/8511  1/2103670  7/85/8 x 17  1/417  3/4223/45.5631/2 x 12  1/272  1/274  1/21188
                                  20086  7/8102  3/165  9/1611  1/2138684  1/43/4 x 17  1/417  3/4223/45.5631/2 x 12  1/284  7/886  7/81554
                                  21096  1/8111  3/46  1/411  1/2163093  1/23/4 x 17  1/417  3/4223/45.5631/2 x 12  1/294  1/896  1/81684
                                  220120  3/8136  3/86  5/811  1/22220117  3/43/4 x 17  1/417  3/4223/45.5631/2 x 12  1/21181202308

                                    Download PDF

                                    Fig. PTP-8 – Type G – Quadruple Variable Springs

                                    Fig. PTP-8-Type G-Quadruple Variable Springs
                                    ORDERING: Specify figure number, size, type, description, operating load and calculated amount and direction of pipe movement from installed to operating position. Please specify any non-standard requirements, i.e. internally guided load column, jacking bolt, lifting lugs, etc.

                                    HANGER SIZETYPE G
                                    APPROX. WEIGHT OF EACHROD SIZECASING LENGTHCASING DIAMETERMINIMUM THREAD ENGAGE-MENTMAX. PIPE SIZEMAX. C-C DIM.CHANNEL SIZESPACING BETWEEN CHANNELSPZ
                                    lbs.ABCFW
                                    00701/225  1/447/81224C 3 x 4.15/81  1/23
                                    10781/228  3/447/81224C 3 x 4.15/81  1/23
                                    20861/231  3/447/81224C 3 x 4.15/81  1/23
                                    301021/227  3/45  9/167/81630C 3 x 4.13/423
                                    401141/230  1/45  9/167/81630C 3 x 4.13/423
                                    501221/2335  9/167/81630C 3 x 4.13/423
                                    601745/832  3/46  5/81  1/162036C 3 x 4.1123  1/4
                                    702065/836  3/86  5/81  1/162036C 3 x 4.1123  1/4
                                    802545/838  3/86  5/81  1/162036C 3 x 4.1123  1/4
                                    903743/438  1/88  5/81  5/162036C 4 x 5.41  1/433  1/4
                                    1004423/442  7/88  5/81  5/162036C 4 x 5.41  1/432  1/4
                                    1103783/434  1/88  5/81  5/162036C 4 x 5.41  1/433  3/4
                                    120426136  3/48  5/81  9/162036C 5 x 6.71  1/243  15/16
                                    130570146  3/48  5/81  3/42036C 5 x 6.71  1/243  3/8
                                    1406061  1/447  3/48  5/81  3/41633C 5 x 6.71  1/243  5/8
                                    1506841  1/447  3/48  5/81  7/82036C 6 x 10.52  1/845  5/8
                                    1608681  1/256  7/88  5/82  3/162036C 8 x 11.52  1/843  11/16
                                    17010881  3/465  1/48  5/82  7/162036C 8 x 11.52  1/843  15/16
                                    1801992264  3/812  3/42  13/162042C 12 x 20.72  3/844  15/16
                                    19023422  1/473  3/812  3/43  1/162042C 12 x 20.72  5/845  3/16
                                    20031402  1/286  7/812  3/43  5/162040C 12 x 20.72  7/844  15/16
                                    21038102  3/496  1/812  3/43  11/162448C 15 x 33.93  1/845  7/16
                                    22050123120  3/812  3/43  15/162448C 15 x 33.93  3/845  11/16

                                      Download PDF

                                      Fig. 400 – Light Duty Spring Hanger

                                      Fig400



                                      SERVICES: Recommended for light loads where vertical movement does not exceed 1¼ inches.
                                      MATERIALS: Carbon steel spring coil and casing.
                                      APPROVALS: Complies with Federal Specification WW-H-171D (Type 49) and Manufacturers Standardization Society SP-69 (Type 48).
                                      INSTALLATION: Designed for attachment to its supporting member by screwing a rod into the top cap of the hanger the full depth of the cap.
                                      SELECTION: Normally done by approximate methods taking into account weight of pipe, covering, contents, and major fittings.
                                      APPLICATION: The Light Duty Spring Hanger is used for the support of miscellaneous field run piping systems subject to slight (up to ¼”) vertical displacement. It is designed for the incorporation in rod hangers with a load coupling provided for spring loading. Amount of spring loading can be approximated by relating “B” dimension with spring deflection.
                                      ORDERING: Specify figure number, spring size, type, description, finish.

                                      SPRING SIZE NO.ABCDE
                                      (ROD TAKE OUT)
                                      FMAXIMUM DEFLECTIONMAX LOAD
                                      lb.
                                      SPRING
                                      DEFLECTION
                                      lb. per in.
                                      WEIGHT
                                      lb. per 100
                                      MIN.MAX.
                                      13/84  1/26  1/24  1/83  3/42  3/41  5/825226160
                                      23/84  1/26  1/44  1/83  3/43  1/81  5/81  3/411566238
                                      31/25  7/87  3/45  1/252  3/43  1/21  7/816387287
                                      41/25  7/87  5/85  1/253  1/43  1/21  3/4266152350
                                      55/86  3/48  3/46  3/85  3/44  1/84  1/22400200680
                                      63/48  3/810  7/887  3/84  5/84  1/22  1/2600240982
                                        • Please be as specific as possible using Fig. Number and/or Type. You may also upload files below.
                                        • If this is an urgent request please use our 24/7 Emergency Request Service!
                                        • Please attach a drawing, photo, document or other file(s) to help us generate your quote.
                                          Drop files here or
                                            Top
