Cable Mounts

Schedule a Meeting

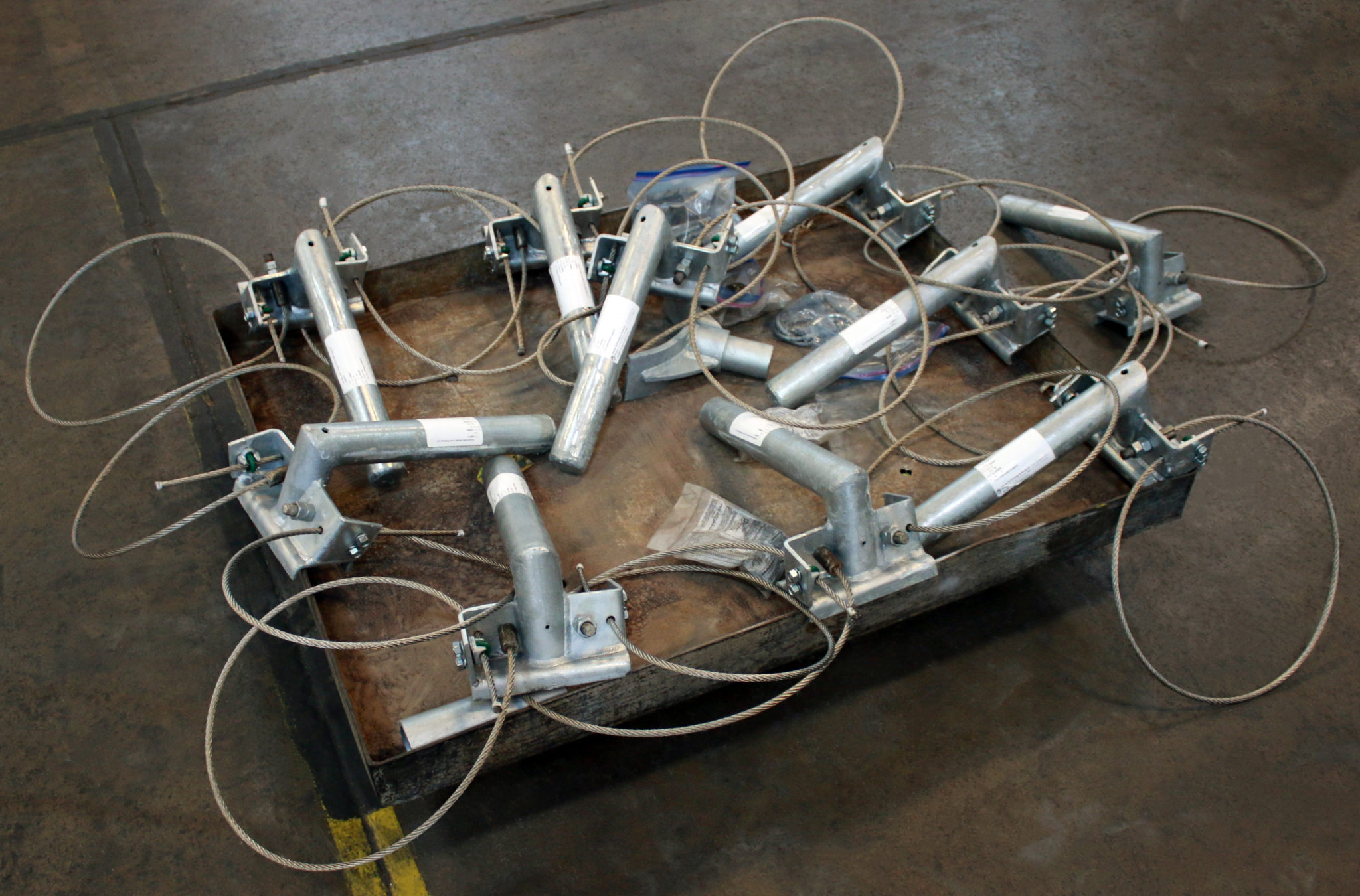

Primary support modules utilize adjustable, high-strength cables to clamp instrument assemblies to process lines 3″ through 36″ in diameter. These primary modules can be used independently or together with secondary modules to construct a universal support package for any instrument in any position.

Sulphuric Acid Plant
Synthetic Gas Plant
Utility Plant
Water Reclamation Plant

Waste Water Treatment Plant
Biofuel Production Pipeline
Booster Pump Station
Bridge Overpasses

Cat Cracker Unit
Coker and De-Coker Unit
Compressor Station
Containment Tank

Cooling System
Cooling Tower
Crude Oil Terminal
See More

Instrument Stands & Supports Gallery

ASME Vessels, Pig Launchers, Strainers and More from Sweco Fab

See More Videos

[post_listing_data post_name=’resource’ sorting=’no’ texonomy_name=’post_tag’ term_name=’faq-cable-mounts’ display_view=’second-view’]
More FAQs…

GENERAL DIMENSIONS & SPECIFICATIONS

IS-620 Cable Mount for 3″ – 14″ Dia. Vertical Line

PRIMARY INSTRUMENT SUPPORT MODULE, PREFAB SINGLE INSTRUMENT, CABLE MOUNT SADDLE W/ RIGHT ANGLE, EXTENSION 16″ LG, FOR 3″-14″ DIA. PIPE, VERTICAL.

IS-620 CABLE MOUNT FOR 3″ – 14″ DIA. VERTICAL LINE
HOW TO ORDER:
Specify the part number from our instrument support catalog quantity, and mention any dimensions outside of our standard range, if any.

IS-620 Cable Mount for 16″ – 36″ Dia. Vertical Line

PRIMARY INSTRUMENT SUPPORT MODULE, PREFAB SINGLE INSTRUMENT, CABLE MOUNT SADDLE W/ RIGHT ANGLE, EXTENSION 16″ LG, FOR 16″-36″ DIA. PIPE, VERTICAL.

Instrument supports 13
HOW TO ORDER:
Specify the part number from our instrument support catalog quantity, and mention any dimensions outside of our standard range, if any.

IS-630 Cable Mount for 3″-14″ Dia. Horizontal Line

PRIMARY INSTRUMENT SUPPORT MODULE, PREFAB SINGLE INSTRUMENT, CABLE MOUNT SADDLE W/ RIGHT ANGLE, EXTENSION 16″ LG, FOR 3″-14″ DIA. PIPE, HORIZONTAL.

Instrument supports 11
HOW TO ORDER:
Specify the part number from our instrument support catalog quantity, and mention any dimensions outside of our standard range, if any.

IS-630 Cable Mount for 16″-36″ Dia. Horizontal Line

PRIMARY INSTRUMENT SUPPORT MODULE, PREFAB SINGLE INSTRUMENT, CABLE MOUNT SADDLE W/ RIGHT ANGLE, EXTENSION 16″ LG, FOR 16″-36″ DIA. PIPE, HORIZONTAL.

Instrument supports 12
HOW TO ORDER:
Specify the part number from our instrument support catalog quantity, and mention any dimensions outside of our standard range, if any.

IS-635 Cable Mount w/ Thd. Coupling for 3″-14″ Dia. Horizontal or Vertical Line

PRIMARY INSTRUMENT SUPPORT MODULE, PREFAB SINGLE INSTRUMENT, CABLE MOUNT SADDLE W/ THREADED COUPLING FOR 2″ NPT PIPE EXTENSION, FOR 3″-14″ DIA. HORIZONTAL OR VERTICAL PIPE.

Instrument supports 15
HOW TO ORDER:
Specify the part number from our instrument support catalog quantity, and mention any dimensions outside of our standard range, if any.

IS-635 Cable Mount w/ Sq. Leg Extension for 3″-14″ Dia. Horizontal Line

PRIMARY INSTRUMENT SUPPORT MODULE, PREFAB SINGLE INSTRUMENT, CABLE MOUNT SADDLE W/ SQ LEG EXTENSION, FOR 3″-14″ DIA. PIPE HORIZONTAL OR VERTICAL.

IS-635 CABLE MOUNT W/ SQ. LEG EXTENSION FOR 3″-14″ DIA. HORIZONTAL LINE
HOW TO ORDER:
Specify the part number from our instrument support catalog quantity, and mention any dimensions outside of our standard range, if any.

IS-635 Cable Mount w/ Thd. Coupling for 16″-36″ Dia. Horizontal or Vertical Line

PRIMARY INSTRUMENT SUPPORT MODULE, PREFAB SINGLE INSTRUMENT, CABLE MOUNT SADDLE W/ THD COUPLING FOR 2″ NPT PIPE EXTENSION, FOR 16″-36″ DIA. PIPE, HORIZONTAL OR VERTICAL.

IS-635 CABLE MOUNT W/ THD. COUPLING FOR 16″-36″ DIA. HORIZONTAL OR VERTICAL LINE
HOW TO ORDER:
Specify the part number from our instrument support catalog quantity, and mention any dimensions outside of our standard range, if any.



Top
