Pipe Saddles & Coverings

A pipe saddle is a structure consisting of a saddle and integral base that is used to support the pipe by transmitting the load or forces to the adjacent structure.

TYPES AND SIZES

Technical Information

Request a Quote

  • Please be as specific as possible using Fig. Number and/or Type. You may also upload files below.
  • If this is an urgent request please use our 24/7 Emergency Request Service!
  • Please attach a drawing, photo, document or other file(s) to help us generate your quote.
    Drop files here or

    Acid Plants
    Ammonia Plant
    Chemical Plant
    Clean Fuels

    Cogeneration Plant
    Cold / Cryogenc Service
    Commercial
    Electric Plant

    Energy Facility
    Ethylene Plant
    Heat Recovery Steam Generation Plant
    Hospital

    LLDPE Chemical Plant
    LNG Plant
    MTBE Plant
    See All

    See More Images

    A saddle support is a support consisting of a stanchion that utilizes a curved section for cradling the pipe. Adjustable ...Continue Reading

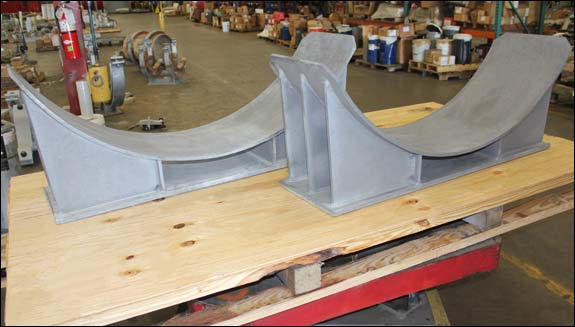

    A pipe saddle is a structure consisting of a saddle and integral base that is used to support the pipe ...Continue Reading

    The pipe saddle size will be dependent upon the pipe diameter and the thickness of the insulation. 42″ Large Bore ...Continue Reading

    In order to determine the appropriate insulation covering saddle, onewould measure the O.D. of the pipe and insulation together and ...Continue Reading

    For saddle supports that do not require welding, the installation process would involve locating the saddle support in the correct ...Continue Reading


    More FAQs…

    Download PDF

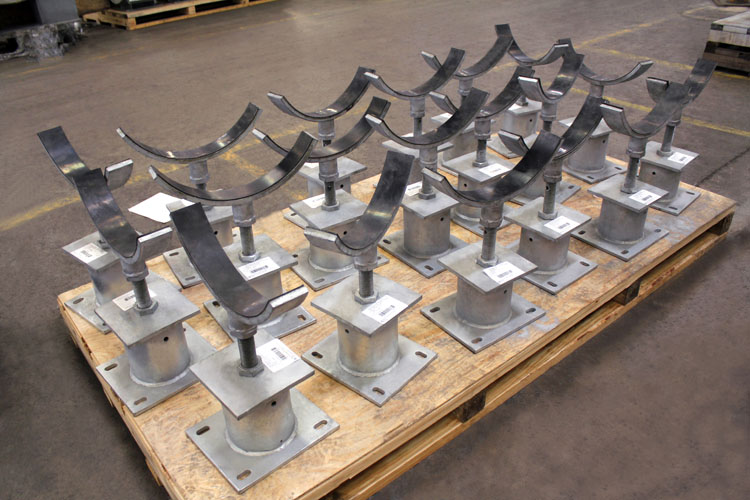

    Fig. 46: Adjustable Pipe Saddle Support

    Fig46

    MATERIAL: Carbon steel saddle, locknut nipple, and special cast iron reducer, assembled. Base included when specified.
    SERVICE: Stanchion type support where vertical adjustment is required.
    INSTALLATION: Adjustment is obtained by turning the lock-nut nipple, the lower end of the nipple, and coupling during adjustment.
    ORDERING: Specify figure number, pipe size, description and finish.

    *Max Load varies based on overall height

    PIPE SIZEAPPROX. WEIGHT lbs. per 100ABCDEMAX LOAD*
    CompleteSaddle
    Only
    SquareMin.Max.
    2 1/29004802 1/23 1/291 1/28132,000
    39205002 1/23 3/491 1/28 1/413 1/42,000
    3 1/29405202 1/2491 1/28 1/213 1/22,000
    4150076034 1/492 1/29 1/4143,800
    5166592534 7/892 1/21014 3/43,800
    61765102535 1/292 1/210 1/215 1/43,800
    82020128036 7/892 1/211 3/416 1/23,800
    102515177538 1/292 1/213 1/218 1/43,800
    122900216039 15/1692 1/21519 3/43,800
    1449203800410 15/1611316 1/420 3/45,300
    1653204200412 3/811317 3/422 1/45,300
    1870805100613 7/813 1/23 1/219 1/2246,700
    20104808500615 3/813 1/23 1/22125 1/26,700
    241300011000617 15/1613 1/2423 3/428 1/47,300
    301700015000621 5/1613 1/242731 1/27,300
    321810016100622 1/213 1/2428 1/432 3/47,300
    362490022900624 1/213 1/2430 1/434 3/47,300

    Download PDF

    Fig. 48: Pipe Saddle Support with U-Bolt

    Fig48

    MATERIAL: Carbon steel stanchion saddle with steel U-Bolt and nuts.
    INSTALLATION:
    1. Slip saddle base into riser pipe.
    2. If riser pipe and flange are used, flange is drilled for bolting to steel beam or floor.
    3. Yoke is attached to saddle after pipe is in place.

    ORDERING: Specify figure number, pipe size, description, material and finish.

    PIPE SIZEAPPROX. WEIGHT (lbs. per 100)ABMAX LOAD
    4107534 3/163,800
    5121034 13/163,800
    6127035 7/163,800
    8213036 15/163,800
    10257038 7/163,800
    12312039 15/163,800
    145000410 15/165,300
    165700412 3/85,300
    186400413 7/86,700
    2011350615 3/86,700
    2413700617 15/167,300
    3014650619 1/87,300
    3217400821 5/167,300
    3626800824 1/27,300

    Download PDF

    Fig. 183: Pipe Insulation Protection Shield

    183

    MATERIAL: Carbon steel
    FINISH: Galvanized and black
    SIZE RANGE: For use with ½” thru 24” pipe with insulation thickness ½”, 3/4”, 1”, 1 ½” and 2”.
    SERVICE: Recommended for outside of foam or fiber glass insulation to preclude crushing of insulation without breaking the vapor barrier.
    APPROVALS: Complies with Federal Specification WW-H-171E (Type 41) and Manufacturers Standardization Society SP-69 (Type 40).
    ORDERING: Specify figure number, pipe size, description, insulation thickness and finish.

    Shield Size Selection Table
    Insulation Thickness (in.)
    SIZE1/23/411-1/22
    1/21A1A
    3/41A1A2A4A6A
    11A2A3A5A7A
    1 1/42A3A3A6A7A
    1 1/22A3A4A6A7A
    23A4A5A7A8A
    2 1/24A5A6A7A8A
    35A6A7A8A9A
    3 1/28A9A10A
    48A9A10A
    59B10B11B
    610B11B12B
    813C14C
    1014C15C16C
    1216C17C18C
    1417C18C19C
    1619C20C21C
    1821C22C23C
    2023C24C25C
    2426C27C28C

    SHIELD DIMENSION
    SHIELD SIZESTOCK SIZE (GAGE )APPROX. WEIGHT eachLENGTH LRADIUS R
    X1A180.54120.95
    1A180.69121.19
    2A180.84121.44
    3A180.99121.75
    4A181.1122.00
    5A181.3122.25
    6A181.4122.50
    7A181.6122.78
    8A161.9123.32
    9A162.7123.82
    10A163.1124.32
    9B164.0183.82
    10B164.6184.32
    11B165.1184.82
    12B165.6185.38
    13C1410.2245.88
    14C1411.1246.38
    15C1411.9247.00
    16C1412.7247.50
    17C1413.6248.00
    18C1414.5248.50
    19C1221.2249.00
    20C1222.4249.50
    21C1223.62410.00
    22C1224.82410.50
    23C1225.92411.00
    24C1227.12411.50
    25C1228.32412.00
    26C1231.02413.00
    27C1231.82413.50
    28C1233.02414.00

    Download PDF

    Fig. 184: Pipe Covering Saddle for 1″ Insulation

    Fig185

    FINISH: Black, galvanized, or painted.
    SERVICE : Designed to keep insulation from crushing and to reduce heat losses.
    ORDERING: Specify figure number, pipe size, description, insulation thickness and finish.
    NOTE: All saddles are 12” long with the side edges turned up.

    FIG. 184 - 1″ INSULATION
    PIPE SIZEMAX. RECOM. LOADAPPROX. WEIGHT (lb. per 100)COVERING THK.C
    3/412001417/81 9/16
    112001411 1/161 7/8
    1 1/412001417/81 7/8
    1 1/2120015112 1/8
    212001671 1/162 3/8
    2 1/212001671 1/162 5/8
    3120018812 15/16
    3 1/212002281 1/43 7/16
    412002281 1/163 7/16
    5120022813 15/16
    6180037814 1/2

    Download PDF

    Fig. 185: Pipe Covering Saddle for 1 1/2″ Insulation

    Fig185

    FINISH: Black, galvanized, or painted.
    SERVICE: Designed to keep insulation from crushing and to reduce heat losses.
    ORDERING: Specify figure number, pipe size, description, insulation thickness and finish.
    NOTE: All saddles are 12” long with the side edges turned up.

    FIG. 185 - 1 1/2″ INSULATION
    PIPE SIZEMAX. RECOM. LOADAPPROX. WEIGHT per 100COVERING THK.C
    3/412002101 7/162 1/8
    112002101 9/162 3/8
    1 1/412002101 5/82 5/8
    1 1/212002101 1/22 5/8
    212002341 9/162 15/16
    2 1/212002761 7/83 7/16
    312002761 9/163 7/16
    3 1/212003211 13/163 15/16
    412003211 9/163 15/16
    512003211 1/24 7/16
    618004421 1/25
    850005811 1/26 1/8
    1050005811 9/167 1/4
    1250007811 9/168 1/4
    1450007811 1/28 3/4
    1650008441 1/29 3/4
    1850009121 1/210 3/4
    20720010441 1/211 7/8
    24720012311 1/213 7/8
    30720013331 1/216 7/8
    36720018031 1/219 7/8

    Download PDF

    Fig. 186: Pipe Covering Saddle for 2″ Insulation

    Fig186

    FINISH: Black, galvanized, or painted.
    SERVICE: Designed to keep insulation from crushing and to reduce heat losses.
    ORDERING: Specify figure number, pipe size, description, insulation thickness and finish.
    NOTE: All saddles are 12” long with the side edges turned up.

    FIG. 186 - 2″ INSULATION
    PIPE SIZEMAX. RECOM. LOADAPPROX. WEIGHT per 100COVERING THK.C
    3/412002761 7/82 5/8
    112002762 1/82 15/16
    1 1/412002761 15/162 15/16
    1 1/218003182 5/163 1/2
    218003192 1/83 1/2
    2 1/218003192 5/164
    318003582 1/164
    3 1/218003582 1/44 1/2
    418003582 1/164 1/2
    5180035825
    6180057325 9/16
    8180063426 9/16
    1050007652 1/167 3/4
    1250009882 1/168 3/4
    14500098829 1/4
    1650001040210 1/4
    1872001040211 3/8
    2072001161212 3/8
    2472001335214 3/8
    3072001408217 3/8
    3672001893220 3/8

    Download PDF

    Fig. 187: Pipe Covering Saddle for 2 1/2″ Insulation

    Fig187



    FINISH: Black , galvanized, or painted.
    SERVICE: Designed to keep insulation from crushing and to reduce heat losses.
    ORDERING: Specify figure number, pipe size, description, insulation thickness and finish.
    NOTE: All saddles are 12” long with the side edges turned up.

    FIG. 187 - 2 1/2″ INSULATION
    PIPE SIZEMAX. RECOM. LOADAPPROX. WEIGHT (lb. per 100)COVERING THK.C
    1 1/412003612 7/163 7/16
    1 1/218003612 13/164
    218003612 5/84
    2 1/218004062 7/84 1/2
    318004062 9/164 1/2
    3 1/218004462 3/45
    418004462 9/165
    518004462 9/165 9/16
    618006512 1/26 1/16
    818007212 11/167 3/16
    1050008202 9/168 1/4
    12500010452 5/89 1/4
    14500010452 1/29 3/4
    16720011072 1/210 7/8
    18720012392 1/211 7/8
    20720012392 1/212 7/8
    24720014342 1/214 7/8
    30720019992 1/217 7/8
    36720020202 1/220 7/8

    Download PDF

    Fig. 188: Pipe Covering Saddle for 3″ Insulation

    Fig188

    FINISH: Black , galvanized, or painted.
    SERVICE: Designed to keep insulation from crushing and to reduce heat losses.
    ORDERING: Specify figure number, pipe size, description, insulation thickness and finish.
    NOTE: All saddles are 12” long with the side edges turned up.

    FIG. 188 - 3″ INSULATION
    PIPE SIZEMAX. RECOM. LOADAPPROX. WEIGHT (lb. per 100)COVERING THK.C
    218004493 1/84 1/2
    2 1/218004493 3/85
    318004913 1/165
    3 1/218004913 5/165 9/16
    418004913 1/165 9/16
    518004913 1/166 1/16
    6180077336 9/16
    818007733 1/87 11/16
    1050008843 1/168 3/4
    12500011353 1/169 3/4
    1450001135310 1/4
    1672001330311 3/8
    1872001330312 3/8
    2072001342313 3/8
    2472002034315 3/8
    3072002137318 3/8
    3672002158321 3/8

    Download PDF

    Fig. 189: Pipe Covering Saddle for 4″ Insulation

    Fig189

    FINISH: Black , galvanized, or painted.
    SERVICE: Designed to keep insulation from crushing and to reduce heat losses.
    ORDERING: Specify figure number, pipe size, description, insulation thickness and finish.
    NOTE: All saddles are 12” long with the side edges turned up.

    FIG. 189 - 4″ INSULATION
    PIPE SIZEMAX. RECOM. LOADAPPROX. WEIGHT (lb. per 100)COVERING THK.C
    418006114 1/166 9/16
    518006114 3/167 3/16
    6180010204 1/87 11/16
    8180010204 3/168 11/16
    10500010834 1/169 3/4
    12500013984 1/810 3/4
    1450001398411 1/4
    1672001530412 3/8
    1872001530413 3/8
    2072002279414 3/8
    2472002305416 3/8
    3072002396419 3/8
    3672002413422 3/8

    Download PDF

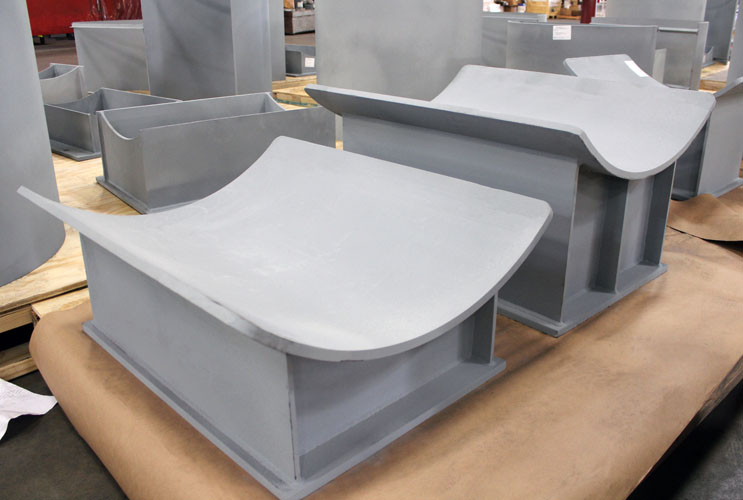

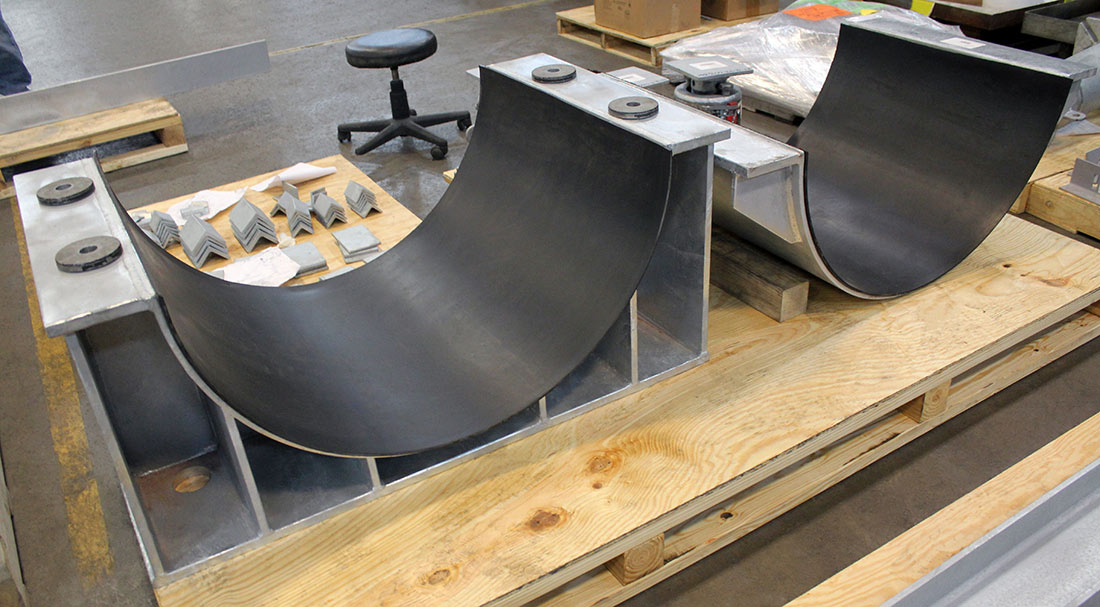

    Fig. 2000: Heavy Duty Pipe Saddles

    Fig. 2000: Heavy Duty Pipe Saddles a
    Fig. 2000: Heavy Duty Pipe Saddles
    NOTE:
    1. Tolerances: R=1%-0
    Other Dimension – 1/16, Except Plate Thickness – 1/32 Angle – 1 1/4 Deg.
    2. Full Encirclement Saddle Plates shall be used on all cross-country pipelines, on Grade X-46 or higher strength pipe, and on all station pipework designed to operate at or in excess of 90% of Min. Specified yield strength. Segmental Saddle Plates shall be used on station pipework designed to operate at less than 50% of min. yield strength.
    3. For maximum spans of pipelines using saddles use Standard Engineering Practice.
    4. Pipe Support of Sleeper Under the Saddle shall be designed to accommodate full axial movement of the pipeline and saddle.
    5. Vent hole 1/4 to be drilled in each segment of saddle.

    HOW TO ORDER: Specify figure number, pipe size, and description.

    PIPE SIZERADIUSDIMENSIONSAPPROX.
    WEIGHT lbs.
    R
    ABCD
    E
    FType 1Type 2
    20
    10
    20 1/2
    2 3/8
    7
    4
    1/2
    3/8
    165
    90
    22
    11
    22
    2 5/8
    7 1/2
    4
    1/2
    3/8
    185
    100
    24
    12
    23  1/2
    2 7/8
    8
    4
    1/2
    3/8
    195
    105
    26
    13
    25 1/2
    3 3/8
    8 1/2
    4
    1/2
    3/8
    210
    110
    28
    14
    27
    3 5/8
    9
    4
    1/2
    3/8
    230
    120
    30
    15
    29
    4
    9 1/2
    4
    5/8
    1/2
    315
    175
    32
    16
    31
    4 1/2
    10
    4
    5/8
    1/2
    330
    190
    34
    17
    32
    5
    10
    4
    5/8
    1/2
    355
    200
    36
    18
    34
    5
    11
    4
    5/8
    1/2
    375
    210
    38
    19
    36
    6
    11
    4
    5/8
    1/2
    395
    220
    40
    20
    38
    6
    12
    4
    5/8
    1/2
    420
    235
    42
    21
    40
    6
    13
    4
    5/8
    1/2
    440
    250
    48
    24
    46
    6
    16
    4
    5/8
    1/2
    510
    285
    54
    27
    52
    7
    19
    4
    5/8
    1/2
    575
    320
    60
    30
    58
    8
    20
    4
    5/8
    1/2
    625
    360

    Download PDF

    Heavy Duty Pipe Saddles

    Fig260

    FINISH: Black, galvanized, or painted.
    SERVICE: General piping
    ORDERING: Specify figure number, pipe size, description, finish and height.

    *Max load varies based on height.

    PIPE
    SIZE
    PLATE
    SIZE A
    PIPE
    SIZE B
    PIPE
    SIZE C
    PLATE
    SIZE D
    MAX LOAD*
    3
    5 x 1/41 1/2
    2 1/2
    8 x 8 x 3/82,000
    4
    6 x 1/42
    3
    8 x 8 x 3/83,800
    6
    6 x 1/42
    3
    8 x 8 x 3/83,800
    8
    7 x 3/83
    4
    8 x 8 x 1/23,800
    10
    7 x 3/83
    4
    8 x 8 x 1/23,800
    12
    9 x 3/84
    6
    10 x 10 x 3/43,800
    14
    9 x 3/84
    6
    10 x 10 x 3/45,300
    16
    11 x 3/86
    8
    12 x 12 x 3/45,300
    18
    11 x 3/86
    8
    12 x 12 x 3/46,700

    Download PDF

    Fig. 210: Pipe Roller Chair

    Fig. 210: Pipe Roller Chair

    MATERIAL: Cast iron roll, steel roll rod, steel continuous thread rods and hex nuts.
    SERVICE: For support of pipe where horizontal movement due to expansion and contraction will occur and where vertical adjustment up to 6” may be necessary.
    HOW TO SIZE:
    1. If roll is to support bare pipe, select the size directly from nominal pipe size.
    2. If used with pipe covering protection saddle, see pipe insulation chart for size of pipe roll.
    3. If roll is to support covered pipe, the O.D. of the covering should not be greater than the O.D. of the pipe for which the roll was designed.

    ORDERING: Specify figure number, pipe size, description and finish.

    PIPE SIZE
    MAX. RECOM.
    LOAD (lb.)
    WEIGHT
    (lb. per 100)
    A
    B
    C
    D
    E
    F
    STEEL SIZE G
    BOLT SIZE H
    2600
    110
    3 1/16
    1 9/16
    1 1/2
    3/8
    1 1/4
    3 7/8
    1/4 x 1 1/4
    3/8 x 1 1/4
    2 1/2
    660
    136
    3 1/2
    1 7/16
    1 5/8
    1/2
    1 1/4
    4 3/4
    1/4 x 1 1/43/8 x 1 1/4
    3
    700
    164
    3 15/16
    2 3/16
    1 3/4
    1/2
    2
    5 1/2
    1/4 x 1 1/4
    3/8 x 1 1/4
    3 1/2750
    250
    4 1/22 1/2
    2
    1/2
    2
    6
    3/8 x 1 1/2
    1/2 x 1 1/2
    4
    750
    305
    5 1/16
    2 3/4
    2 5/16
    1/2
    2
    6 1/2
    3/8 x 1 1/2
    1/2 x 1 1/2
    5
    750
    428
    5 15/16
    3 7/16
    2 1/2
    5/8
    2 1/2
    7 7/8
    3/8 x 1 1/2
    1/2 x 1 1/2
    6
    1070
    535
    6 3/4
    4
    2 3/4
    3/4
    3 1/4
    9 1/23/8 x 1 3/4
    1/2 x 1 1/2
    8
    1350
    690
    8 1/4
    5 1/43
    7/8
    4
    11 3/4
    3/8 x 2
    1/2 x 1 1/2
    10
    1730
    1263
    9 7/8
    6 1/43 5/8
    7/8
    5
    14 1/4
    1/2 x 2
    1/2 x 1 1/2
    12
    2400
    2060
    11 9/16
    7 7/164 1/8
    1
    6
    16 1/21/2 x 2
    1/2 x 1 1/2
    14
    3130
    2680
    13 1/16
    8 5/164 3/4
    1 1/87
    18 5/8
    1/2 x 2 1/2
    5/8 x 2
    16
    3970
    4575
    14 3/8
    9 3/85
    1 1/48
    21
    5/8 x 2 1/2
    5/8 x 2 1/2
    18
    4200
    4700
    15 5/8
    10 3/85 1/4
    1 1/49
    22 7/85/8 x 2 1/2
    5/8 x 2 1/2
    20
    4550
    6200
    17 1/4
    11 1/25 3/4
    1 3/810
    25 1/25/8 x 3
    3/4 x 3
    24
    6160
    9990
    20 13/1613 13/167
    1 1/212
    30
    3/4 x 3
    3/4 x 3

    Download PDF

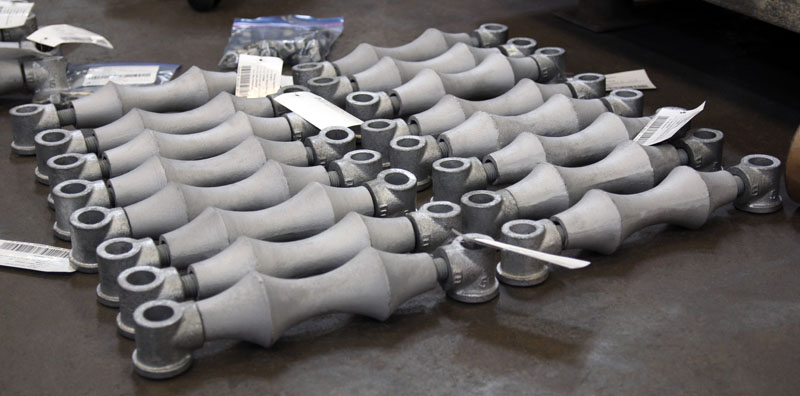

    Fig. 215: Adjustable Pipe Roll Support

    Fig215

    MATERIAL: Cast iron roll and sockets, steel roll rod, steel continuous thread rods and hex nuts.
    SERVICE: For support of pipe where horizontal movement due to expansion and contraction will occur and where vertical adjustment up to 6” may be necessary.
    SIZE: If roll is to support bare pipe, select the size directly from nominal pipe size.
    ORDERING: Specify figure number, pipe size, description and finish.

    PIPE SIZEAPPROX. WEIGHT lbs. per 100ABCDH
    11133/831 1/29 1/21 1/16
    1 1/41173/83 3/81 7/89 1/21 1/4
    1 1/21203/83 5/82 1/89 1/21 3/8
    21253/84 1/82 5/89 1/21 5/8
    2 1/22291/24 7/83 1/89 1/21 15/16
    32421/25 1/23 3/49 1/22 1/4
    3 1/22691/26 1/84 1/2102 9/16
    43755/86 3/44 3/4102 13/16
    54695/88 1/165 13/16103 7/16
    67573/49 9/166 7/8114
    811017/811 15/168 7/811 3/45 1/8
    1013747/814 1/161111 3/46 3/8
    1219367/815 13/1612 1/211 3/47 7/16
    143116117 3/414 1/411 3/48 3/8
    1642451 1/819 3/416 1/4189 7/16
    1846551 1/821 7/818 1/41810 1/2
    2066231 1/424 1/420 1/41811 5/8
    24102521 1/228 5/824 1/42414
    30186811 7/835 1/230 1/42417 7/16

    Download PDF

    Fig. 230: Pipe Roller Chair

    Fig230

    MATERIAL: Cast iron roll and stand.
    SERVICE: For support of piping that expands and contracts longitudinally and where vertical adjustment is not necessary.
    HOW TO SIZE:
    1. If roll is to support bare pipe, select size from nominal pipe size.
    2. If used with pipe covering protection saddle, see FIG. 183 for size of pipe roll.

    INSTALLATION: Two cored holes “I” for anchorage bolting purpose.
    ORDERING: Specify figure number, pipe size, description and finish.

    PIPE
    SIZE
    2 – 3 1/24 – 68 – 1012 – 1416 – 20243036 – 42
    MAX. RECOM. SIZE LOAD, lbs.3909502100307549806100750012000
    COMPLETE (APPROX. WEIGHT, lbs per 100)6408851530281039654950992515200
    ROLL AND ROD (APPROX. WEIGHT, lbs per 100)9013553010101565195033905700
    ROLL ONLY (APPROX. WEIGHT, lbs per 100)701104408501270145024004100

    PIPE SIZEABCDEFGHIJKLMNP
    23 7/1642 1/22 11/163/41 1/161 3/49/1611/21/48 7/165 1/223 1/2
    2 1/23 7/8
    34 1/8
    3 1/24 3/8
    44 11/164 1/42 5/837/81 1/1629/1611/21/49 15/16634 3/4
    55 3/8
    66
    8753/41 1/81 1/22 1/43 3/83/415/83/88 1/2838 5/8
    109 3/4
    129 1/16611 7/1612 1/23 3/47/813/43/811 1/168311 1/4
    1411 7/8
    1610 1/46 1/21 3/81 7/81 1/42 3/164 1/41 1/4113/161/2139413 5/8
    1814 5/8
    2015 5/8
    2411 3/86 1/211 9/161 1/434 3/81 1/2113/161/213 3/89417 3/4
    3014 1/481 3/82 3/81 1/23 1/25 1/81 7/811 1/161/21711521 7/8
    361791 1/22 7/161 1/245 3/42 1/811 5/163/42012625 3/4
    4228 7/8

    Download PDF

    Fig. 240: Adjustable Pipe Roller Stand

    Fig240

    MATERIAL: Cast iron base plate, stand and roll, steel adjusting screws.
    SERVICE: To support pipe lines where vertical and lateral adjustment during installation may be required in addition to provision for expansion and contraction.
    HOW TO SIZE: If roll is to support bare pipe, select the size from nominal pipe size (see below).
    ORDERING: Specify figure number, pipe size, description and finish.

    SIZE (inches)MAX. RECOM. LOAD, lbs.WEIGHT per 100
    2 — 3 1/23901525
    4 — 69501930
    8 — 1021003205
    12 — 1430755115
    16 — 2049807130
    2461008700
    30750016615

    PIPE SIZEABCDD1EFGHJJ1KLM MAX.NPRSTU
    MIN.MAX.
    25 1/85 3/81 3/41 3/46 7/88 3/85 1/22 3/41 7/81/23 7/86 3/8111/167/811/415/83 7/164
    2 1/25 3/85 5/82 1/8
    35 3/462 3/8
    3 1/266 1/42 5/8
    46 1/272 3/42 1/168 1/89 7/85 3/43 3/42 1/161/25 1/87 3/817/81 1/811/415/84 11/164 1/4
    577 1/23 3/8
    67 5/88 1/84
    810 3/811 5/85 1/43 7/1610 5/86 3/463 1/43/47 3/817/81 3/41 1/83/813/475
    1011 1/212 3/46 3/8
    121314 1/47 1/23 7/8138847/89 1/217/81 3/41 1/83/817/89 1/166
    1413 5/814 7/88 1/8
    1615 1/416 5/89 3/84 1/414 5/88 5/894 1/21 1/411 1/8111 7/81 1/45/81 3/16110 1/46 1/2
    1816 3/817 3/410 3/81 3/8
    2017 3/818 3/411 3/8
    2419 5/82113 3/84 3/815 3/48 5/8104 7/161 3/812 1/411 1/81 7/81 3/85/81 13/16111 3/86 1/2
    302426 3/416 3/45 1/819 1/410 1/212 1/25 1/21 3/415 3/411 1/23 1/41 5/83/41 3/81 1/414 1/48

    Download PDF

    Fig. 182: Non-Metallic Wear Pad

    Fig182

    Fig182b

    MATERIAL: Vinyl resins
    FINISH: As-Is
    SIZE RANGE: 1/2″ thru 48″
    SERVICE: Recommended to protect un-insulated pipe from the metal supporting structure. Pad to be secured to pipe using epoxy adhesive.
    MAX TEMP.: 400°F
    ORDERING: Specify figure number, pipe size, description, length and angle.

    PIPE SIZETHICKNESSLENGTH LANGLE ARADIUS R
    1/21/412907/16
    3/41/412909/16
    11/412905/8
    1 1/41/412907/8
    1 1/21/412901
    21/412901 3/16
    2 1/21/412901 7/16
    31/412901 13/16
    3 1/21/412901 3/4
    41/412902 1/4
    51/412902 13/16
    61/412603 5/16
    81/412604 5/16
    101/412605 3/8
    121/412306 3/8
    141/412307
    161/412308
    181/412309
    201/4123010
    243/8123012
    26-483/812301/2 of Pipe O.D.
    • Please be as specific as possible using Fig. Number and/or Type. You may also upload files below.
    • If this is an urgent request please use our 24/7 Emergency Request Service!
    • Please attach a drawing, photo, document or other file(s) to help us generate your quote.
      Drop files here or
        Top
