Variable Spring Hangers Designed for an Oil Sands Expansion Project

June 30, 2014


Piping Technology & Products designed and fabricated 107 variable spring hanger assemblies for an Oil Sands Expansion Project in a central processing facility in Canada. We fabricated these C-type variable springs from hot-dipped galvanized carbon steel. The design loads range from 3,343 lb. to 3,417 lb., and each assembly underwent a series of tests and detailed quality control inspections prior to shipment.

Read More

Pre-Insulated Pipe Supports Designed for High Temperatures in a Power Plant

June 22, 2014

Pre-Insulated Pipe Supports Designed For High Temperatures In A Power Plant

Piping Technology designed hot shoes with sliding bases for a power plant in Mississippi. The assemblies will be installed on 28″ diameter pipe and include 1-1/2″ thick calcium silicate insulation. Manufacturing fabricated these supports from galvanized carbon steel with a polyethylene base. They are capable of an operating load of 7,200 lb., temperatures up to 1,200 degrees F and an axial movement of +/- 4-1/2″. The shipment was met three days prior to the critical field need date.

Read More

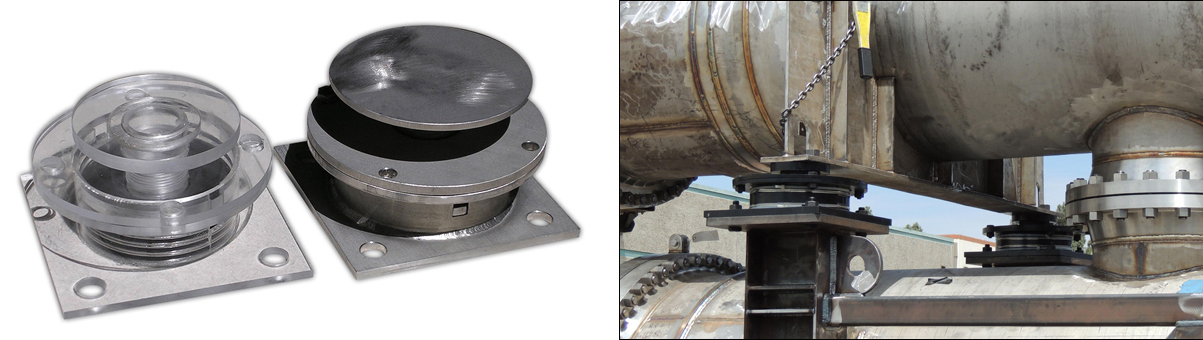

PT&P partners with Disc Spring Technology to offer you the Compact Spring Support

June 9, 2014

Disc Spring TechnologyThe compact spring is ideal for applications with large loads and limited space.

– Minimizes excessive loads on sensitive equipment
– Same load for smaller working range while consuming 25-50% less space
– Ideal for locating under equipment flanges
– Reduces design time, maintenance cost and accidents

>> Get a quote now or email us your questions at



These springs are the solution for satisfying excessive nozzle loads for load sensitive equipment, such as pumps, compressors, turbines, blowers, heat exchangers, pressure vessels and storage tanks. In addition, the entire spring support can be made from corrosion resistant stainless steels or other suitable alloys making it ideal for combating aggressive environments like seawater, marine air and harsh chemicals.


View the DST Catalog for more details

Read More
